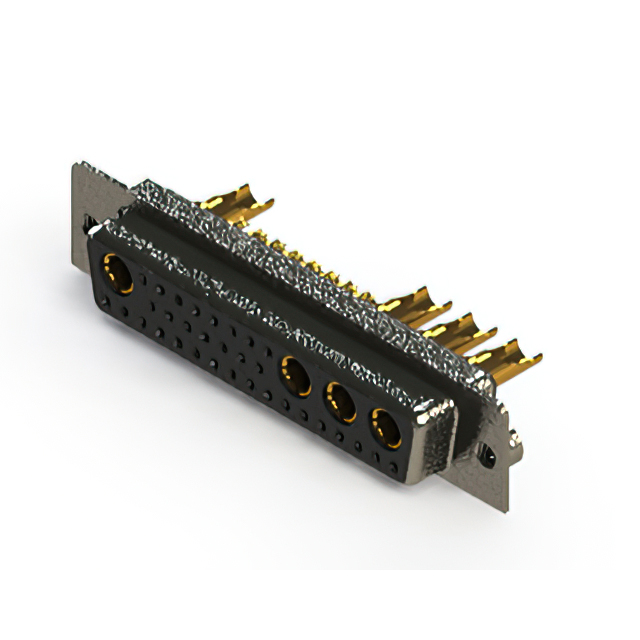

628-36W4622-3T2

Active

EDAC Inc.

CONN D-SUB RCPT 36POS SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-36W4622-3T2

Active

EDAC Inc.

CONN D-SUB RCPT 36POS SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-36W4622-3T2

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	30 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5 (DD, D), 36W4
Voltage Rating	125 VDC

628-36W Series

...

Part	Termination	Dielectric Material	Contact Material	Voltage Rating	Connector Type	Color	Shell Size, Connector Layout	Contact Finish Thickness	Flange Feature	Material Flammability Rating	Number of Rows	Contact Type	Features	Mounting Type	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Current Rating (Amps)	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)
EDAC Inc. 628-36W4224-2T5	Solder	Polyester Thermoplastic	Copper Alloy	125 VDC	Receptacle Female Sockets	Black	36W4 5 (DD D)	Flash	4-40 Board Side	UL94 V-0	2	Signal and Power	Board Lock Shielded	Through Hole	Combo D-Sub	-55 °C	125 °C	Gold	5 A 20 A
EDAC Inc. 628-36W4224-3N5	Solder	Polyester Thermoplastic	Copper Alloy	125 VDC	Receptacle Female Sockets	Black	36W4 5 (DD D)	Flash	4-40 Board Side	UL94 V-0	2	Signal and Power	Board Lock Shielded	Through Hole	Combo D-Sub	-55 °C	125 °C	Gold	5 A 30 A	Nickel Plated Steel
EDAC Inc. 628-36W4224-4NB	Solder	Polyester Thermoplastic	Copper Alloy	125 VDC	Receptacle Female Sockets	Black	36W4 5 (DD D)	Flash	Board Side (M3)	UL94 V-0	2	Signal and Power	Shielded	Through Hole	Combo D-Sub	-55 °C	125 °C	Gold	5 A 40 A	Nickel Plated Steel
EDAC Inc. 628-36W4624-2ND	Solder	Polyester Thermoplastic	Copper Alloy	125 VDC	Receptacle Female Sockets	Black	36W4 5 (DD D)		Board Side (M3)	UL94 V-0	2	Signal and Power	Board Lock Shielded	Through Hole	Combo D-Sub	-55 °C	125 °C	Gold	5 A 20 A	Nickel Plated Steel	0.76 Ám	30 Áin
EDAC Inc. 628-36W4224-2N3	Solder	Polyester Thermoplastic	Copper Alloy	125 VDC	Receptacle Female Sockets	Black	36W4 5 (DD D)	Flash	4-40 Board Side	UL94 V-0	2	Signal and Power	Shielded	Through Hole	Combo D-Sub	-55 °C	125 °C	Gold	5 A 20 A	Nickel Plated Steel
EDAC Inc. 628-36W4224-4T4	Solder	Polyester Thermoplastic	Copper Alloy	125 VDC	Receptacle Female Sockets	Black	36W4 5 (DD D)	Flash	4-40	UL94 V-0	2	Signal and Power	Shielded	Through Hole	Combo D-Sub	-55 °C	125 °C	Gold	5 A 40 A
EDAC Inc. 628-36W4622-3T2		Polyester Thermoplastic	Copper Alloy	125 VDC	Receptacle Female Sockets	Black	36W4 5 (DD D)		4-40 Board Side	UL94 V-0	2	Signal and Power	Shielded	Free Hanging (In-Line)	Combo D-Sub	-55 °C	125 °C	Gold	5 A 30 A		0.76 Ám	30 Áin
EDAC Inc. 628-36W4624-1NB	Solder	Polyester Thermoplastic	Copper Alloy	125 VDC	Receptacle Female Sockets	Black	36W4 5 (DD D)		Board Side (M3)	UL94 V-0	2	Signal and Power	Shielded	Through Hole	Combo D-Sub	-55 °C	125 °C	Gold		Nickel Plated Steel	0.76 Ám	30 Áin	10A 5A
EDAC Inc. 628-36W4624-1ND	Solder	Polyester Thermoplastic	Copper Alloy	125 VDC	Receptacle Female Sockets	Black	36W4 5 (DD D)		Board Side (M3)	UL94 V-0	2	Signal and Power	Board Lock Shielded	Through Hole	Combo D-Sub	-55 °C	125 °C	Gold		Nickel Plated Steel	0.76 Ám	30 Áin	10A 5A
EDAC Inc. 628-36W4224-3TE	Solder	Polyester Thermoplastic	Copper Alloy	125 VDC	Receptacle Female Sockets	Black	36W4 5 (DD D)	Flash	M3	UL94 V-0	2	Signal and Power	Board Lock Shielded	Through Hole	Combo D-Sub	-55 °C	125 °C	Gold	5 A 30 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 36.79

Description

General part information

628-36W Series

36 (32 + 4 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
