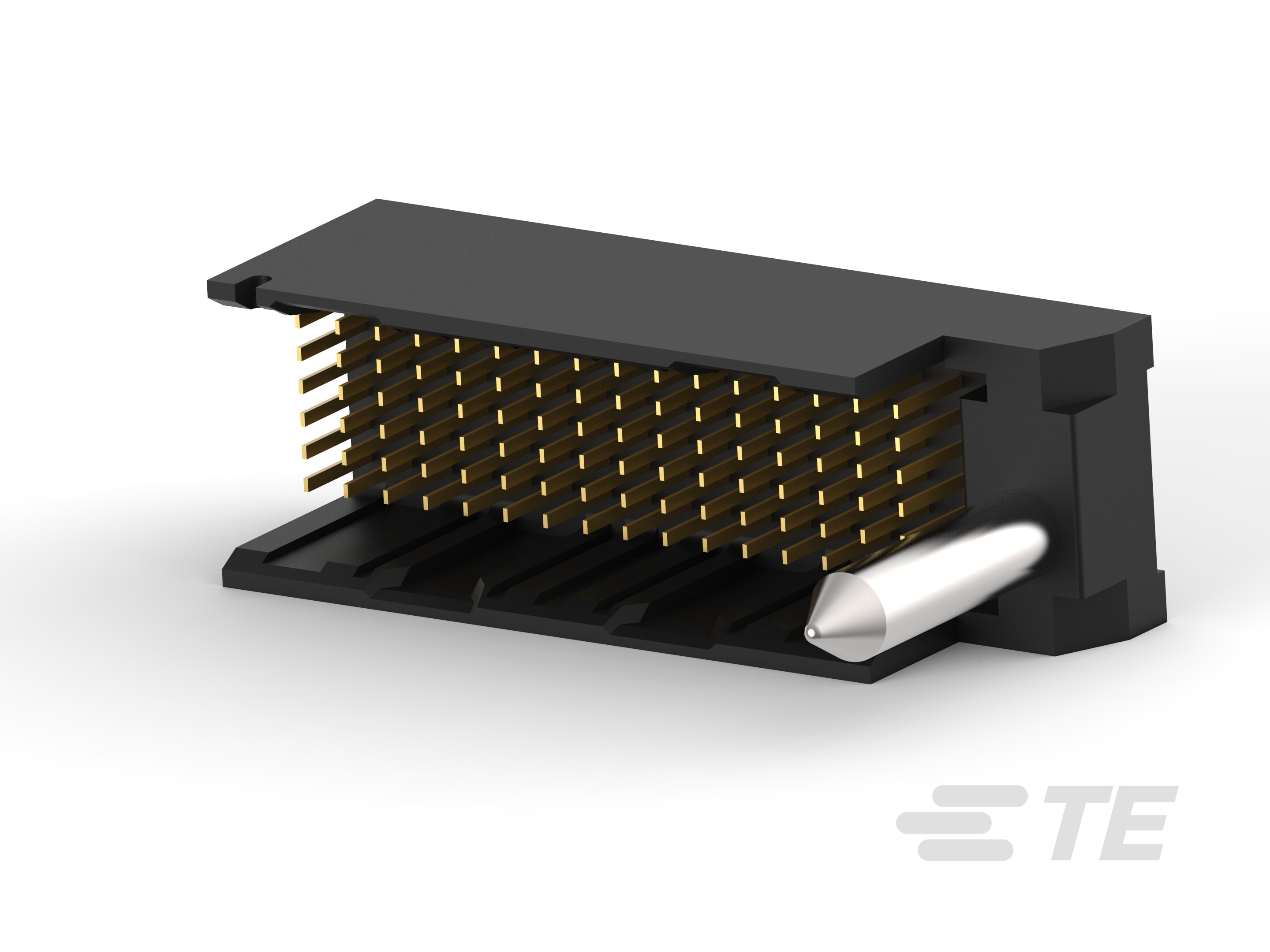

IMP100S,H,V2P16C,RG,OEW39,4.5-2057741-1

2057741-1

Active
TE Connectivity AMP Connectors

IMP100S,H,V2P16C,RG,OEW39,4.5

Find alt
IMP100S,H,V2P16C,RG,OEW39,4.5-2057741-1

2057741-1

Active
TE Connectivity AMP Connectors

IMP100S,H,V2P16C,RG,OEW39,4.5

Find alt

Description

General part information

2057741-1

96 Position High Speed Backplane Connector, 6 Row, 16 Column, PCB Mount Header, Vertical, Partially Shrouded, 1.9 mm [.075 in] Centerline, IMPACT

Technical Specifications

Parameters and characteristics for this part

Specification2057741-1
ColorBlack
Connector StyleImpact, Guide Right
Connector TypeHeader, Male Pins
Contact FinishGold
Contact Finish Thickness30 µin
Mounting TypeThrough Hole
Number of Columns16
Number of Positions96
Number of Positions LoadedAll
Number of Rows6
Pitch0.075 in
TerminationPress-Fit
