1-2007492-8
ActiveCAGE & CONNECTOR, SFP+, 2 X 1 (STACKED), WITHOUT HEAT SINK, WITHOUT LIGHT PIPE, TH, PRESS-FIT
1-2007492-8
ActiveCAGE & CONNECTOR, SFP+, 2 X 1 (STACKED), WITHOUT HEAT SINK, WITHOUT LIGHT PIPE, TH, PRESS-FIT
Description
General part information
1-2007492-8

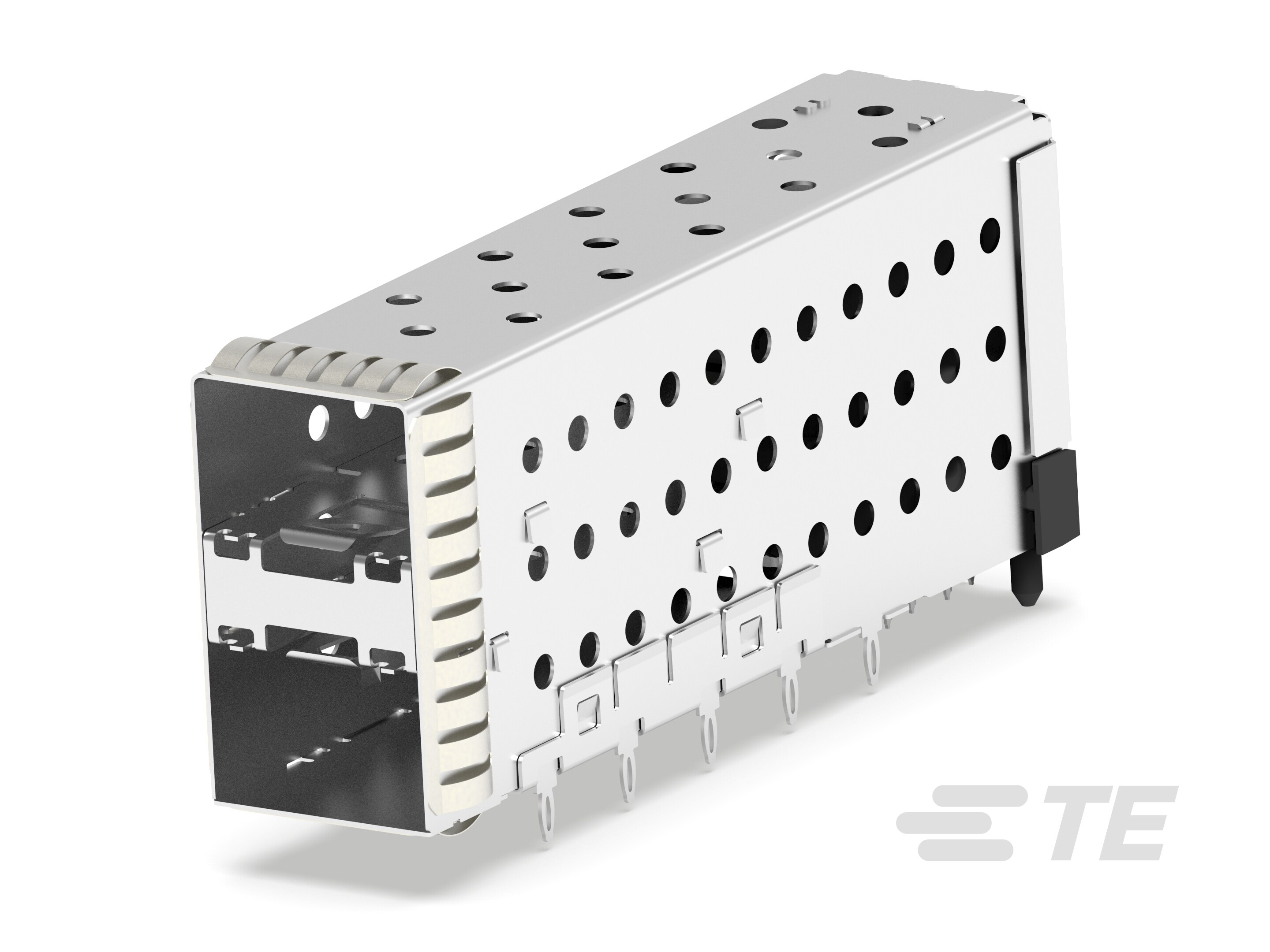

The 1-2007492-8 is a 2-port press-fit stacked SPF+ Cage and Integrated PT Connector Assembly with external EMI spring. It has stacked nickel silver cage with contact plated with 0.76μm gold or gold flash over palladium nickel on mating area and tin plating on tail.
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2007492-8 |
|---|---|
| Connector Pin Configuration (Columns) | 1 pins |
| Connector Pin Configuration (Rows) | 2 pins |
| Connector Style | Receptacle with Cage, Ganged |
| Connector Type | SFP+ |
| Contact Finish | Gold |
| Features | Board Guide, EMI Shielded |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions (Columns) | 20 |
| Number of Positions (Rows) | 2 |
| Number of Positions (Total) | 40 |
| Termination | Press-Fit |
