5343-48722-01
ActiveVishay Dale
CAP FILM 57.7UF 5% 525VAC RADIAL
5343-48722-01
ActiveVishay Dale
CAP FILM 57.7UF 5% 525VAC RADIAL
Description
General part information
5343-48722-01

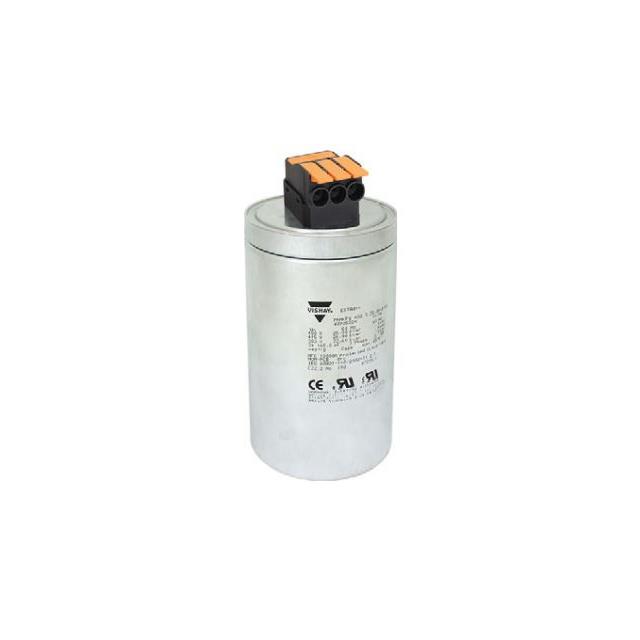

57.7 µF Film Capacitor 525V Polypropylene (PP), Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | 5343-48722-01 |
|---|---|
| Applications | Power Factor Correction (PFC), 3 Phase |
| Capacitance | 57.7 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 7.48 in |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Can, Radial |
| Termination | Screwless - Spring Cage, Tension Clamp |
| Tolerance | 5 % |
| Voltage Rating - AC | 525 V |
