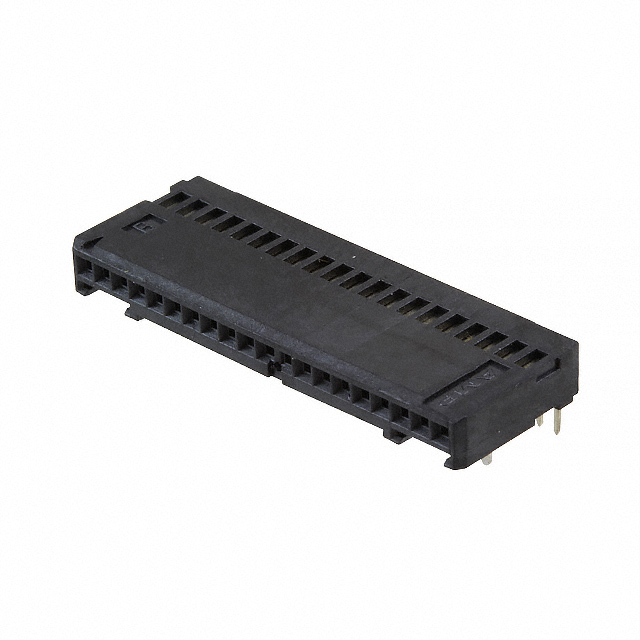

104196-5
ActiveTE Connectivity AMP Connectors
CONN RCPT 20P 0.05 GOLD PCB R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
104196-5
ActiveTE Connectivity AMP Connectors
CONN RCPT 20P 0.05 GOLD PCB R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 104196-5 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám |
| Contact Length - Post | 2.54 mm |
| Contact Length - Post | 0.1 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 0.117 in |
| Insulation Height | 2.97 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Termination | Solder |
| Voltage Rating | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
104196 Series
CONN RCPT 20P 0.05 GOLD PCB R/A
| Part | Features | Number of Positions Loaded | Contact Finish - Post | Contact Shape | Pitch - Mating | Pitch - Mating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Number of Positions | Number of Rows | Connector Type | Insulation Color | Fastening Type | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Termination | Contact Finish - Mating | Voltage Rating | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104196-5 | Board Guide | All | Tin-Lead | Square | 0.05 in | 1.27 mm | Copper Alloy | -65 ░C | 105 ░C | UL94 V-0 | 20 | 1 | Receptacle | Black | Push-Pull | 0.117 in | 2.97 mm | 2.54 mm | 0.1 in | 30 Áin | 0.76 Ám | 150 Áin | 3.81 Ám | Through Hole, Right Angle | Solder | Gold | 30 VAC | Female Socket |
Description
General part information
104196 Series
20 Position Receptacle Connector 0.050" (1.27mm) Through Hole, Right Angle Gold
