SADD44S0GM0G
ActiveMcGill Microwave Systems
D-SUB CONNECTOR SAVER
SADD44S0GM0G
ActiveMcGill Microwave Systems
D-SUB CONNECTOR SAVER
Description
General part information
SADD44S0GM0G

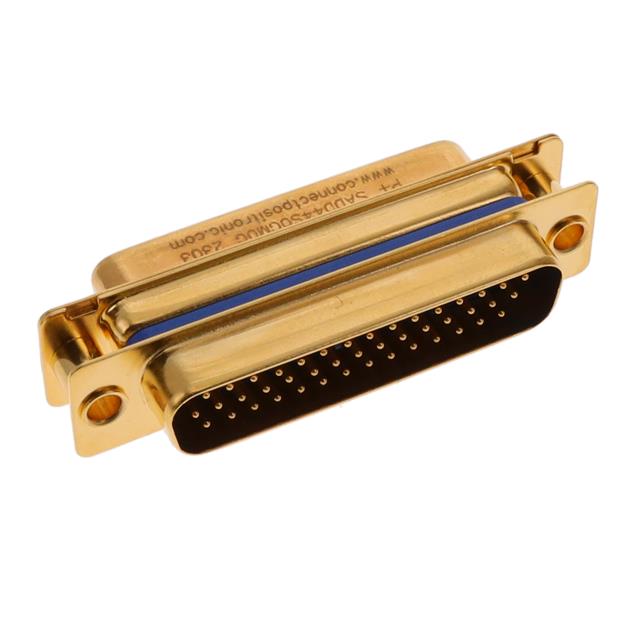

Adapter Connector D-Sub, 44 HD, Male To D-Sub, 50 Pin Female Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | SADD44S0GM0G |
|---|---|
| Connector Style | Connector Saver |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Convert From (Adapter End) Pin Count | 50 |
| Convert From (Adapter End) Pin Gender | Female |
| Convert From (Adapter End) Type | D-Sub |
| Convert To (Adapter End) | D-Sub, Male, HD |
| Convert To (Adapter End) Pin Count | 44 pins |
| Current Rating | 5 A |
| Finish | Gold Plated |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Material | Brass |
| Shielding | Unshielded, Shielded |
| Voltage Rating | 300 VAC/DC |
