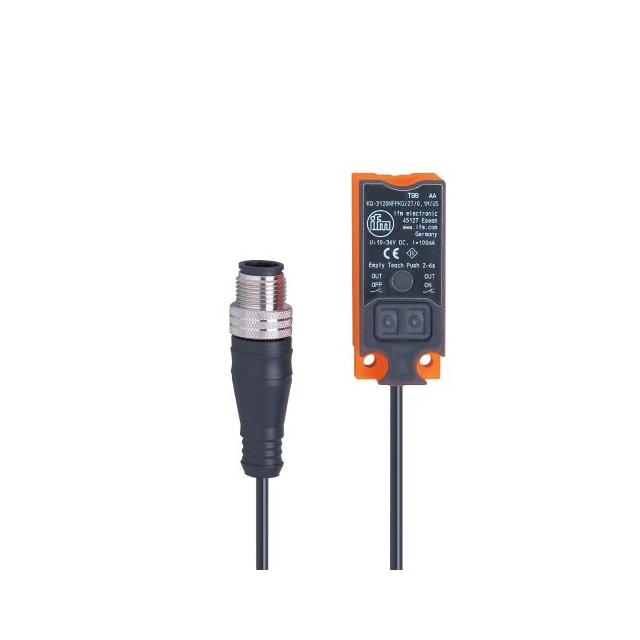

KQ6005
Activeifm efector, inc.
SENSOR PROX CAPACITIVE 12MM MOD
KQ6005
Activeifm efector, inc.
SENSOR PROX CAPACITIVE 12MM MOD
Description
General part information
KQ6005
SENSOR PROX CAPACITIVE 12MM MOD
Technical Specifications
Parameters and characteristics for this part
| Specification | KQ6005 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP65, IP67 |
| Material - Body | Polybutylene Terephthalate (PBT) |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | 3-Wire, PNP-NC, NO |
| Package / Case | Module |
| Sensing Distance | 0.472 " |
| Sensor Type | Capacitive |
| Shielding | Unshielded |
| Termination Style | Cable with Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
