01018-822

Active

Sensata-BEI Sensors

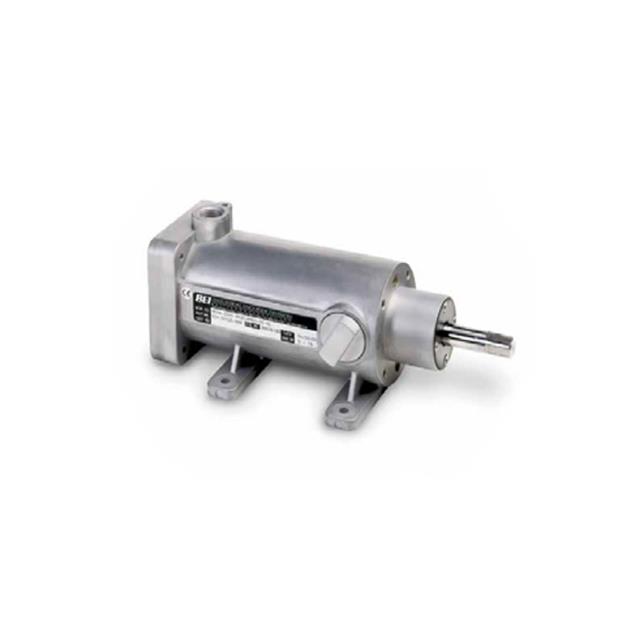

ROTARY ENCODER OPTICAL 500PPR

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 500PPR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	01018-822	01018 Series

Actuator Type	Shaft	Shaft
Built in Switch	False	False
Detent	False	False
Encoder Type	Optical	Optical, Absolute
Mounting Type	Chassis Mount	Chassis Mount
Orientation	User Selectable	User Selectable
Output Type	Quadrature with Index (Incremental)	Quadrature with Index (Incremental), Gray Code (Absolute), Binary (Absolute)
Pulses per Revolution	500	8 - 4096
Termination Style	Terminal Block, Straight - Push In	Connector, Cable, Terminal Block, Straight - Push In
Voltage - Supply [Max]	28 V	15 - 28 V
Voltage - Supply [Min]	5 V	5 V

ROTARY ENCODER OPTICAL 1000PPR

Part	Actuator Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Pulses per Revolution	Output Type	Orientation	Mounting Type	Encoder Type	Termination Style
Sensata-BEI Sensors 01018-910	Shaft	5 V	28 V	1000	Quadrature with Index (Incremental)	User Selectable	Chassis Mount	Optical	Connector
Sensata-BEI Sensors 01018-329	Shaft	5 V	28 V		Gray Code (Absolute)	User Selectable	Chassis Mount	Absolute	Cable
Sensata-BEI Sensors 01018-822	Shaft	5 V	28 V	500	Quadrature with Index (Incremental)	User Selectable	Chassis Mount	Optical	Terminal Block, Straight - Push In
Sensata-BEI Sensors 01018-836	Shaft	5 V	28 V	2000 pulses per revolution	Quadrature with Index (Incremental)	User Selectable	Chassis Mount	Optical	Terminal Block, Straight - Push In
Sensata-BEI Sensors 01018-917	Shaft	5 V	28 V	8	Binary (Absolute), Quadrature with Index (Incremental)	User Selectable	Chassis Mount	Optical	Terminal Block, Straight - Push In
Sensata-BEI Sensors 01018-772	Shaft	5 V	15 V	50	Quadrature with Index (Incremental)	User Selectable	Chassis Mount	Optical	Connector
Sensata-BEI Sensors 01018-929	Shaft	5 V	28 V	4096	Gray Code (Absolute)	User Selectable	Chassis Mount	Absolute	Connector
