1116-6096

Active

Amphenol SV Microwave

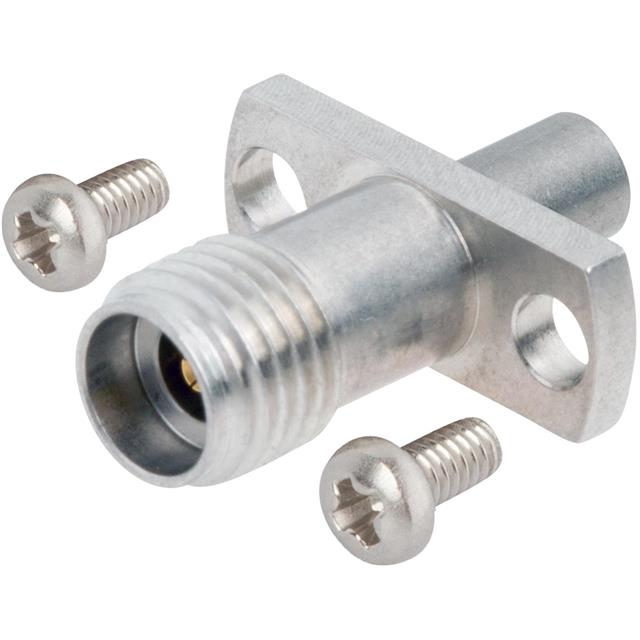

2.4MM FEMALE TO SMPM MALE, SB, F

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1116-6096

Active

Amphenol SV Microwave

2.4MM FEMALE TO SMPM MALE, SB, F

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1116-6096	1116-60 Series

Adapter Series	SMPM	SMP, SMPM
Adapter Series	2.4 mm	2.4 mm
Adapter Series	-	2.4 - 2.92 mm
Adapter Series	-	2.4 mm
Adapter Type	Plug to Jack	Jack to Jack, Plug to Jack
Body Material	Stainless Steel	Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	-	Female to Female
Conversion Type	Between Series	Between Series, Same Series
Convert From (Adapter End)	SMPM Plug, Male Pin	SMP Plug, Male Pin, SMPM Plug, Male Pin
Convert From (Adapter End)	-	2.4 mm
Convert To (Adapter End)	2.4 mm	2.4 - 2.92 mm
Convert To (Adapter End)	-	OS-2.9 Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On	Threaded, Snap-On
Features	Smooth Bore	Smooth Bore, Full Detent
Frequency - Max [Max]	50 GHz	40 - 50 GHz
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Feature	Flange	Flange
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Style	Straight	Straight

1116-60 Series

2.92MM FEMALE TO 2.4MM FEMALE FL

Part	Adapter Type	Convert From (Adapter End)	Mating Cycles	Center Gender	Center Contact Plating	Adapter Series [Max]	Adapter Series [Min]	Mounting Feature	Style	Operating Temperature [Min]	Operating Temperature [Max]	Convert To (Adapter End)	Convert To (Adapter End)	Frequency - Max [Max]	Impedance	Center Contact Material	Conversion Type	Body Material	Fastening Type	Features	Convert From (Adapter End)	Adapter Series	Adapter Series	Dielectric Material
Amphenol SV Microwave 1116-6092	Jack to Jack	2.4 mm	500	Female to Female	Gold	2.92 mm	2.4 mm	Flange	Straight	-65 ░C	165 °C	2.92 mm	OS-2.9 Jack, Female Socket	40 GHz	50 Ohms	Beryllium Copper	Between Series	Stainless Steel
Amphenol SV Microwave 1116-6094	Plug to Jack		500		Gold			Flange	Straight	-65 ░C	165 °C	2.4 mm		40 GHz	50 Ohms	Beryllium Copper	Between Series	Stainless Steel	Snap-On, Threaded	Smooth Bore	SMP Plug, Male Pin	SMP	2.4 mm	Polytetrafluoroethylene (PTFE)
Amphenol SV Microwave 1116-6093	Plug to Jack		500		Gold			Flange	Straight	-65 ░C	165 °C	2.4 mm		40 GHz	50 Ohms	Beryllium Copper	Between Series	Stainless Steel	Snap-On, Threaded	Full Detent	SMP Plug, Male Pin	SMP	2.4 mm	Polytetrafluoroethylene (PTFE)
Amphenol SV Microwave 1116-6095	Plug to Jack		500		Gold			Flange	Straight	-65 ░C	165 °C	2.4 mm		50 GHz	50 Ohms	Beryllium Copper	Between Series	Stainless Steel	Snap-On, Threaded	Full Detent	SMPM Plug, Male Pin	SMPM	2.4 mm	Polytetrafluoroethylene (PTFE)
Amphenol SV Microwave 1116-6096	Plug to Jack		500		Gold			Flange	Straight	-65 ░C	165 °C	2.4 mm		50 GHz	50 Ohms	Beryllium Copper	Between Series	Stainless Steel	Snap-On, Threaded	Smooth Bore	SMPM Plug, Male Pin	SMPM	2.4 mm	Polytetrafluoroethylene (PTFE)
Amphenol SV Microwave 1116-6097	Jack to Jack	2.4 mm	500	Female to Female	Gold	2.4 mm	2.4 mm	Flange	Straight	-65 ░C	165 °C	2.4 mm		50 GHz	50 Ohms	Beryllium Copper	Same Series	Stainless Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 145.44

Description

General part information

1116-60 Series

Adapter Coaxial Connector SMPM Plug, Male Pin To 2.4mm (APC-2.4, OS-50) Jack, Female Socket 50 Ohms
