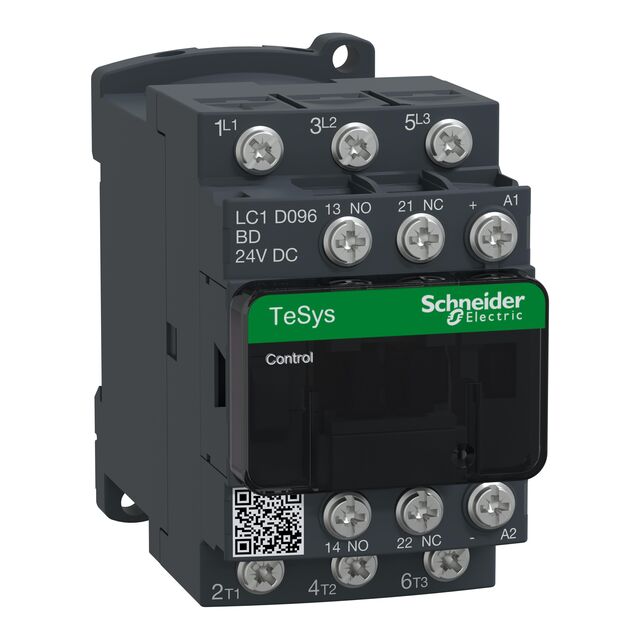

LC1D096BD
ActiveSCHNEIDER ELECTRIC
CONTACTOR 600VAC 9AMP IEC OPTIONS ROHS COMPLIANT: YES
LC1D096BD
ActiveSCHNEIDER ELECTRIC
CONTACTOR 600VAC 9AMP IEC OPTIONS ROHS COMPLIANT: YES
Description
General part information
LC1D096BD
CONTACTOR 600VAC 9AMP IEC OPTIONS ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D096BD |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 9 A |
| Features | Diode, Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 V |
| Operate Time | 72.45 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 24 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Box Lug |
