Description

General part information

ANT-W63-FPC-LH100M4

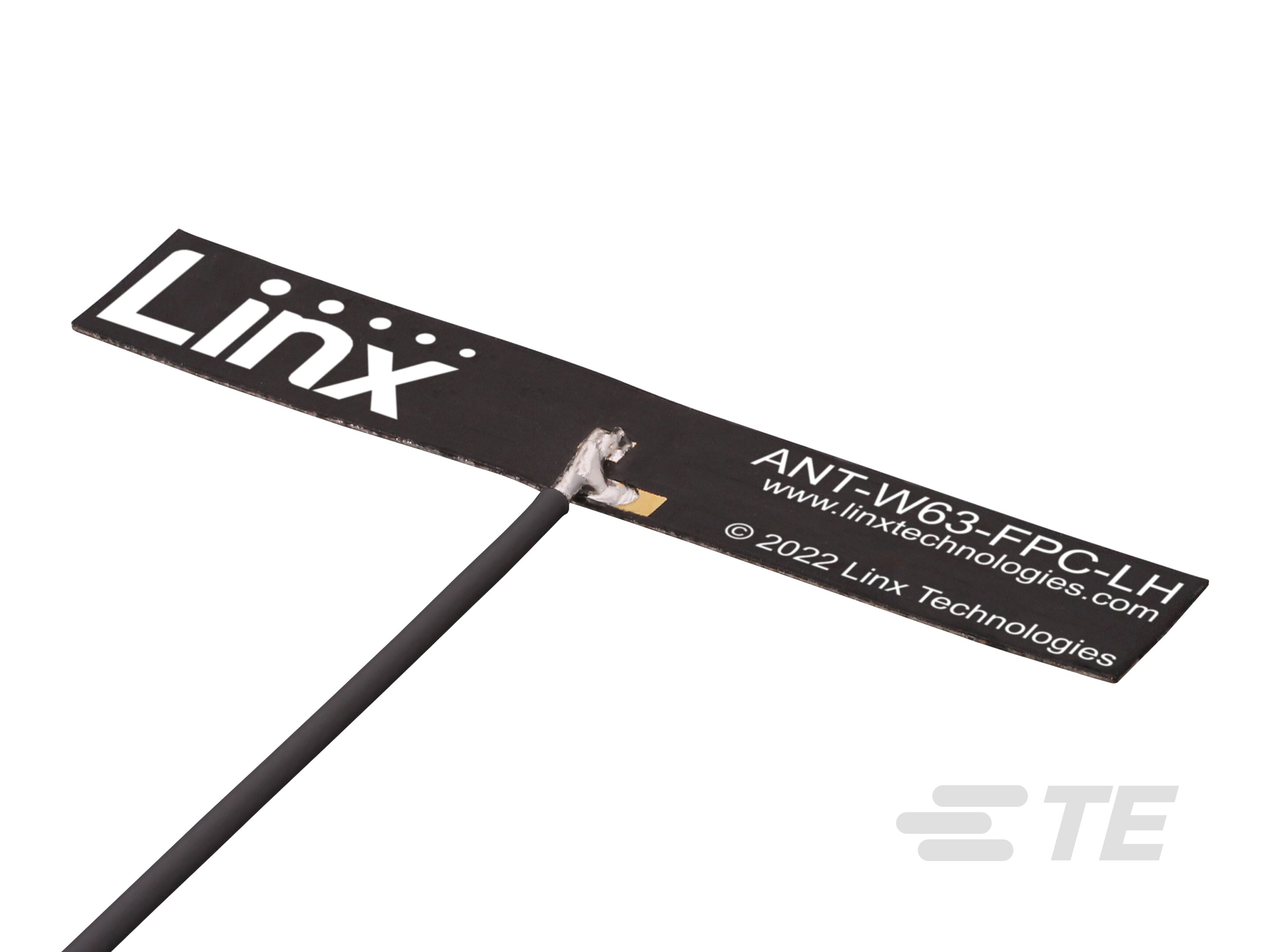

Flexible PCB (FPC) Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive Mount, MHF4, Omnidirectional, Single Port, > 6 dBi Peak Gain

Technical Specifications

Parameters and characteristics for this part

SpecificationANT-W63-FPC-LH100M4
Antenna TypeFlat Patch
ApplicationsZigbee™, Bluetooth, Wi-Fi, 802.11b/g/-c/ax, ISM, U-NII
FeaturesCable, 100mm
Frequency (Center/Band)6.5375GHz, 5.5225GHz, 2.45GHz
Frequency GroupSHF, UHF
Frequency Group Maximum (UHF)3 GHz
Frequency Group Minimum (SHF)4 GHz
Frequency Group Minimum (UHF)2 GHz
Frequency Range (Band 1) Maximum2.5 GHz
Frequency Range (Band 1) Minimum2.4 GHz
Frequency Range (Band 2) Maximum5.895 GHz
Frequency Range (Band 2) Minimum5.15 GHz
Frequency Range (Band 3) Maximum7.125 GHz
Frequency Range (Band 3) Minimum5.95 GHz
Gain4.5 dBi, 10.1 dBi, 6.3 dBi
Height (Max)0.004 in
Mounting TypeAdhesive
Number of Bands3
Power - Max2 VA
RF Family/Standard802.15.4, Bluetooth, General ISM, WiFi
TerminationI-PEX MHF4, IPEX MHF4
VSWR1.4, 1.7, 1.8
