Description
General part information

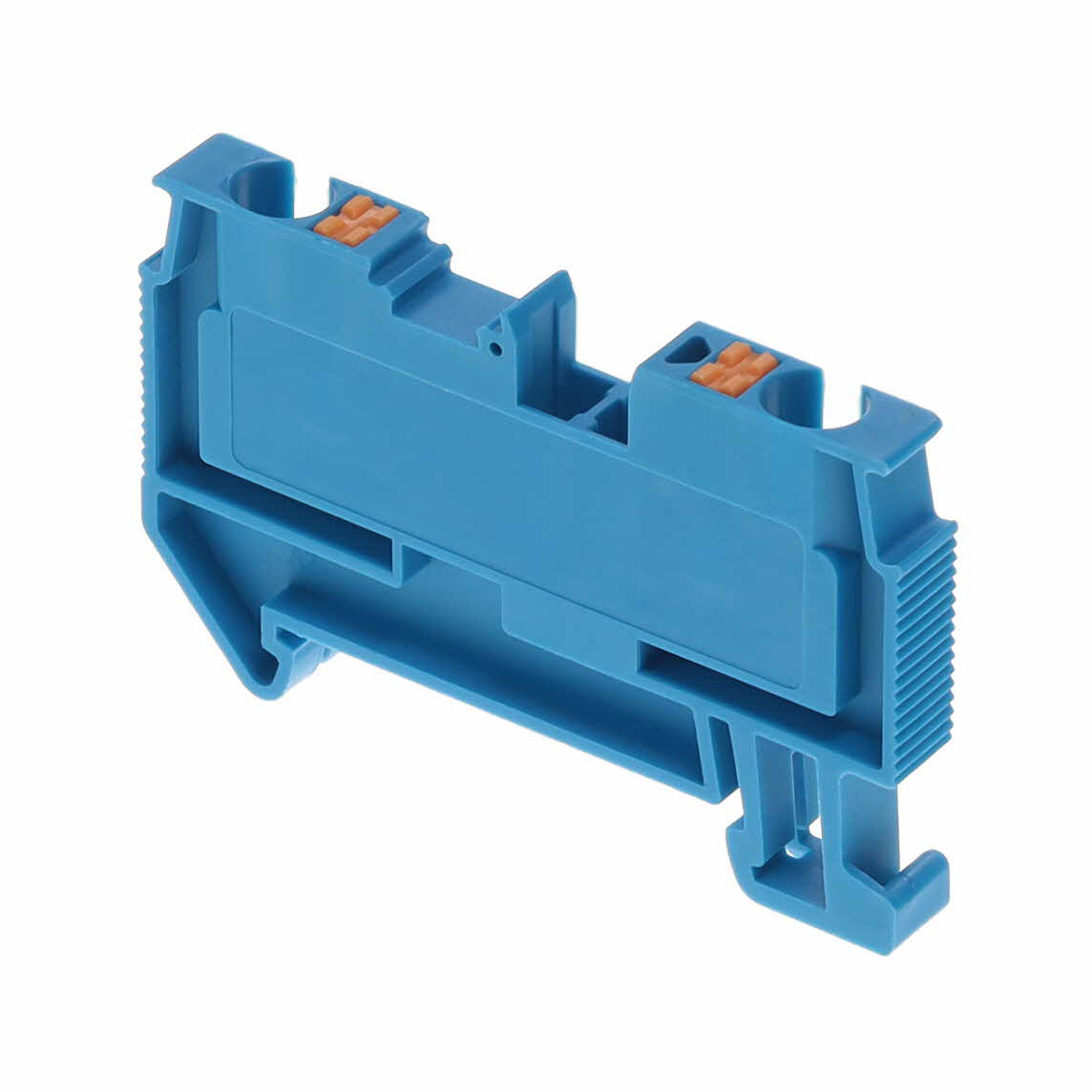

REB-B2C-BU
TERM BLK FEED THRU 10-24AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | REB-B2C-BU |
|---|---|
| Color | Blue |
| Current - UL | 30 A |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Terminal Width | 6.2 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 24 AWG |
| Wire Gauge or Range - AWG (Min) | 10 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
