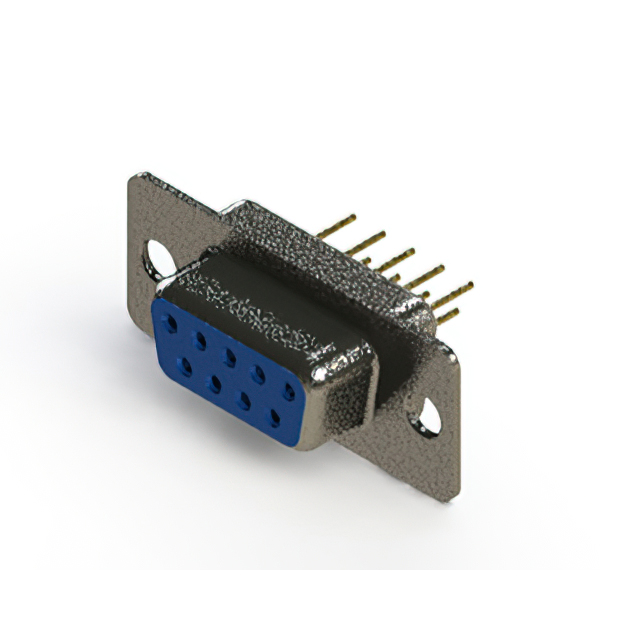

628-M09-221-LN1

Active

EDAC Inc.

D SUBMINIATURE CONNECTOR, 9 CONTACT(S), FEMALE, 0.109 INCH PITCH, SOLDER TERMINAL, RECEPTACLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 627M,628M Series Ordering Guide

628-M09-221-LN1

Active

EDAC Inc.

D SUBMINIATURE CONNECTOR, 9 CONTACT(S), FEMALE, 0.109 INCH PITCH, SOLDER TERMINAL, RECEPTACLE,

Deep-Dive with AI

DocumentsDatasheet 627M,628M Series Ordering Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-M09-221-LN1

Color	Blue
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

628-M09 Series

...

Part	Flange Feature	Contact Finish	Termination	Color	Contact Material	Dielectric Material	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Features	Contact Type	Number of Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Connector Type	Mounting Type	Shell Material, Finish	Contact Finish Thickness
EDAC Inc. 628-M09-321-WT1	Housing/Shell (Unthreaded)	Gold	Solder	White	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1	15 µin	0.38 µm	5 A	Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole
EDAC Inc. 628-M09-621-LN5	4-40 Board Side	Gold	Solder	Blue	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1	30 Áin	0.76 Ám	5 A	Board Lock Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole	Nickel Plated Steel
EDAC Inc. 628-M09-621-WT6	4-40	Gold	Solder	White	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1	30 Áin	0.76 Ám	5 A	Board Lock Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole
EDAC Inc. 628-M09-221-LN1	Housing/Shell (Unthreaded)	Gold	Solder	Blue	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1			5 A	Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole	Nickel Plated Steel	Flash
EDAC Inc. 628-M09-221-LN5	4-40 Board Side	Gold	Solder	Blue	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1			5 A	Board Lock Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole	Nickel Plated Steel	Flash
EDAC Inc. 628-M09-623-GN4	4-40	Gold	Solder	Green	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1	30 Áin	0.76 Ám	5 A	Board Lock Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole	Nickel Plated Steel
EDAC Inc. 628-M09-621-LN1	Housing/Shell (Unthreaded)	Gold	Solder	Blue	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1	30 Áin	0.76 Ám	5 A	Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole	Nickel Plated Steel
EDAC Inc. 628-M09-621-BN2	Housing/Shell (4-40)	Gold	Solder	Black	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1	30 Áin	0.76 Ám	5 A	Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole	Nickel Plated Steel
EDAC Inc. 628-M09-223-BT4	4-40	Gold	Solder	Black	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1			5 A	Board Lock Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole		Flash
EDAC Inc. 628-M09-221-LN2	Housing/Shell (4-40)	Gold	Solder	Blue	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1			5 A	Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole	Nickel Plated Steel	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 2.25

Description

General part information

628-M09 Series

9 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Datasheet

627M,628M Series Ordering Guide

Datasheet
