B82144B2152K000
ActiveEPCOS - TDK Electronics
FIXED IND 1.5UH 4.1A 45 MOHM TH
B82144B2152K000
ActiveEPCOS - TDK Electronics
FIXED IND 1.5UH 4.1A 45 MOHM TH
Description
General part information
B82144B2152K000

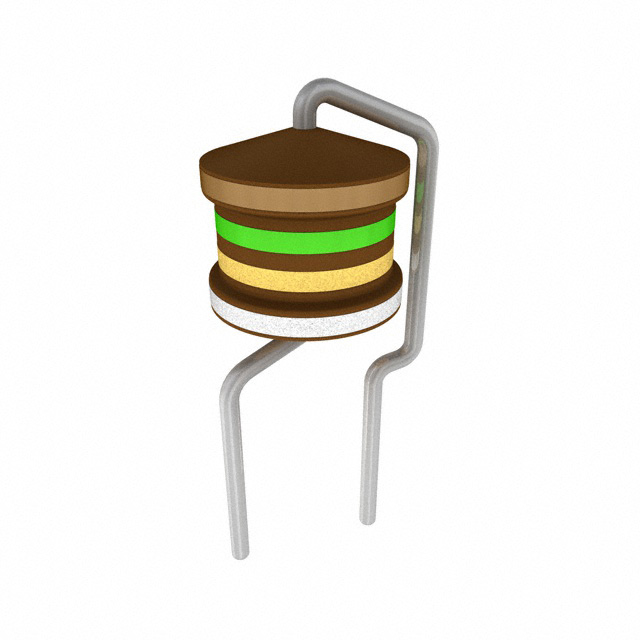

1.5 µH Unshielded Drum Core, Wirewound Inductor 4.1 A 45mOhm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | B82144B2152K000 |
|---|---|
| Current - Saturation (Isat) | 7.2 A |
| Current Rating | 4.1 A |
| DC Resistance (DCR) (Max) | 45 mOhm |
| Frequency - Self Resonant | 170 MHz |
| Height - Seated (Max) | 0.551 in |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Vertical Cylinder, Radial |
| Q | 60 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.256 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
