Description
General part information

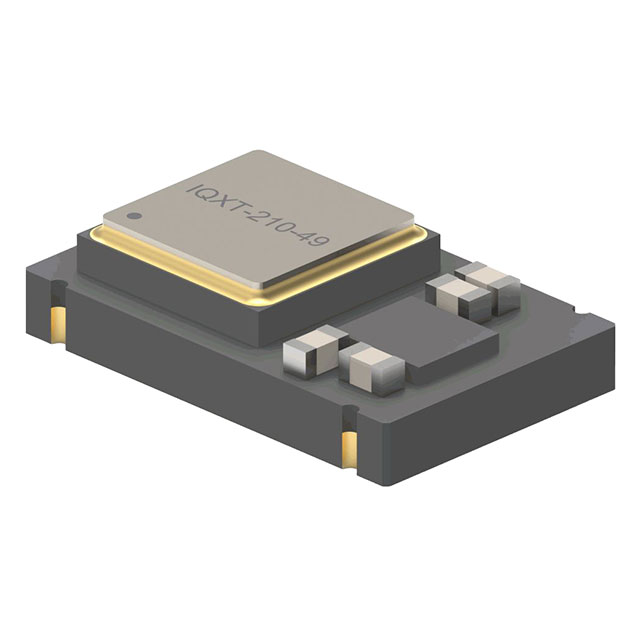

LFTCXO085793
38.88 MHz TCXO HCMOS Oscillator 3.3V 8-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | LFTCXO085793 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 10 mA |
| Frequency | 38.88 MHz |
| Frequency Stability | 280 ppb |
| Height - Seated (Max) | 0.059 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output | HCMOS |
| Package / Case | No Lead, 8-SMD |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | TCXO |
| Voltage - Supply | 3.3 V |
