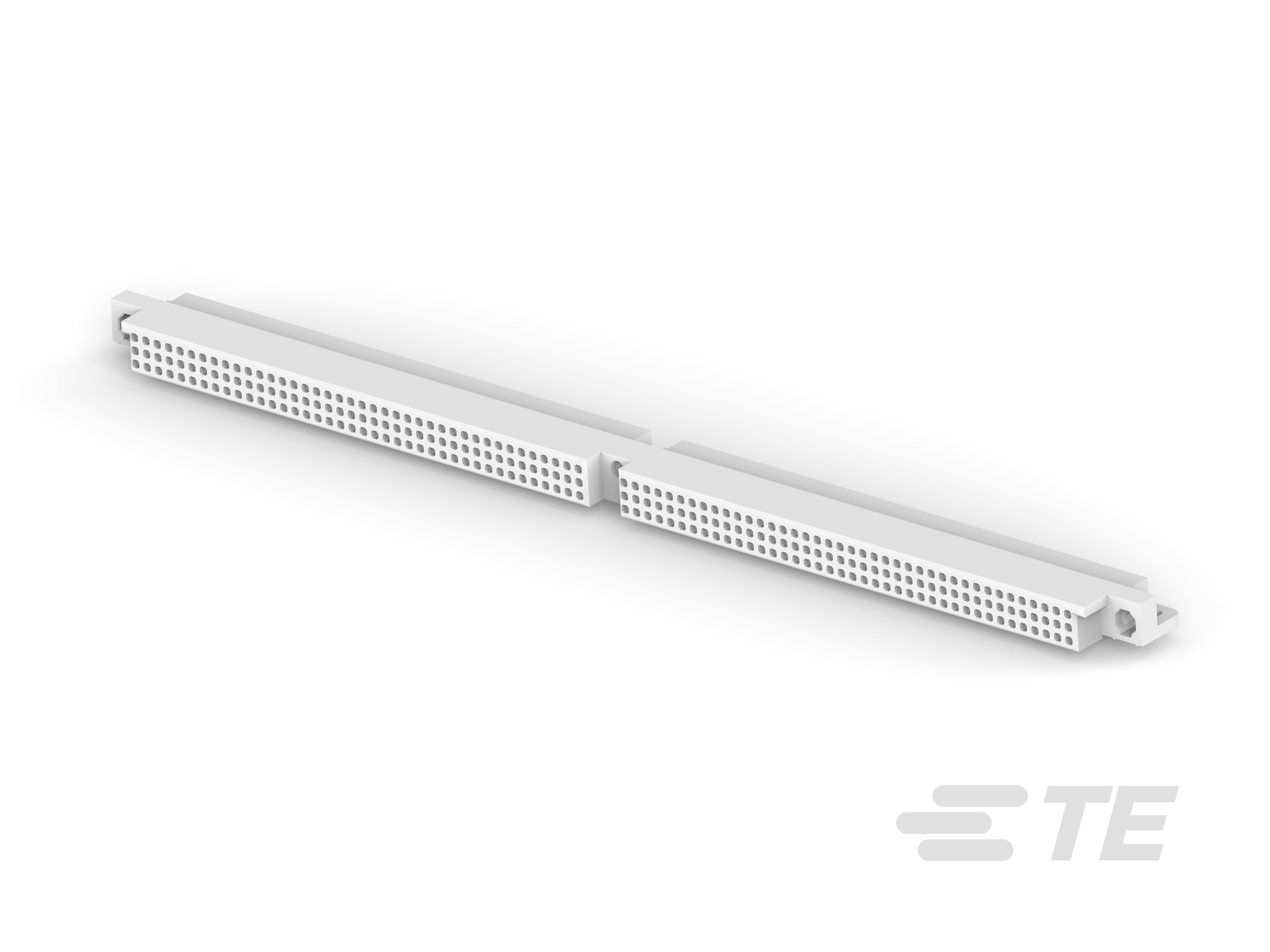

5533514-1
ActiveTE Connectivity AMP Connectors
ASSY,RECPT,R.ANGLE,HDI,LEAD-FREE,3ROW,CT ROHS COMPLIANT: YES
5533514-1
ActiveTE Connectivity AMP Connectors
ASSY,RECPT,R.ANGLE,HDI,LEAD-FREE,3ROW,CT ROHS COMPLIANT: YES
Description
General part information
5533514-1
PCB Mount Receptacle, Right Angle, Board-to-Board, 240 Position, 2.54 mm [.1 in] Centerline, Gold (Au), Through Hole - Solder, Signal, Natural, Tube
Technical Specifications
Parameters and characteristics for this part
| Specification | 5533514-1 |
|---|---|
| Color | Natural |
| Connector Style | High Density (HDC, HDI, HPC) |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Mating Guide |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 240 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Pitch | 0.1 in |
| Termination | Solder |
