629W13W3340-2NA

Active

EDAC Inc.

CONN D-SUB PLUG 13POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629W13W3340-2NA

Active

EDAC Inc.

CONN D-SUB PLUG 13POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629W13W3340-2NA

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (M3)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions [custom]	10
Number of Positions [custom]	3
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	13W3, 13C3, B, DB
Shell Size, Connector Layout	3
Termination	Solder
Voltage Rating	125 VDC

629W13W Series

Part	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Finish Thickness	Contact Finish Thickness	Dielectric Material	Contact Finish	Voltage Rating	Flange Feature	Number of Positions [custom]	Number of Positions [custom]	Connector Style	Contact Material	Mounting Type	Current Rating (Amps)	Contact Type	Features	Connector Type	Ingress Protection	Shell Material, Finish	Shell Size, Connector Layout	Shell Size, Connector Layout	Termination	Number of Rows	Current Rating (Amps)	Contact Finish Thickness
EDAC Inc. 629W13W3140-1N4	UL94 V-0	-55 °C	125 °C	Black	0.127 µm	5 µin	Polybutylene Terephthalate (PBT) Glass Filled	Gold	125 VDC	Housing/Shell (4-40)	10	3	Combo D-Sub	Copper Alloy	Panel Mount Right Angle Through Hole	10A 5A	Signal and Power	Grounding Indents Mounting Brackets Shielded	Male Pins Plug	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Solder	2
EDAC Inc. 629W13W3340-4N3	UL94 V-0	-55 °C	125 °C	Black	0.38 µm	15 µin	Polybutylene Terephthalate (PBT) Glass Filled	Gold	125 VDC	Housing/Shell (4-40)	10	3	Combo D-Sub	Copper Alloy	Panel Mount Right Angle Through Hole		Signal and Power	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Solder	2	5 A 40 A
EDAC Inc. 629W13W3340-2NA	UL94 V-0	-55 °C	125 °C	Black	0.38 µm	15 µin	Polybutylene Terephthalate (PBT) Glass Filled	Gold	125 VDC	Housing/Shell (M3)	10	3	Combo D-Sub	Copper Alloy	Panel Mount Right Angle Through Hole		Signal and Power	Grounding Indents Shielded	Male Pins Plug	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Solder	2	5 A 20 A
EDAC Inc. 629W13W3140-4N3	UL94 V-0	-55 °C	125 °C	Black	0.127 µm	5 µin	Polybutylene Terephthalate (PBT) Glass Filled	Gold	125 VDC	Housing/Shell (4-40)	10	3	Combo D-Sub	Copper Alloy	Panel Mount Right Angle Through Hole		Signal and Power	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Solder	2	5 A 40 A
EDAC Inc. 629W13W3140-4NA	UL94 V-0	-55 °C	125 °C	Black	0.127 µm	5 µin	Polybutylene Terephthalate (PBT) Glass Filled	Gold	125 VDC	Housing/Shell (M3)	10	3	Combo D-Sub	Copper Alloy	Panel Mount Right Angle Through Hole		Signal and Power	Grounding Indents Shielded	Male Pins Plug	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Solder	2	5 A 40 A
EDAC Inc. 629W13W3640-2N4	UL94 V-0	-55 °C	125 °C	Black	0.76 Ám	30 Áin	Polybutylene Terephthalate (PBT) Glass Filled	Gold	125 VDC	Housing/Shell (4-40)	10	3	Combo D-Sub	Copper Alloy	Panel Mount Right Angle Through Hole		Signal and Power	Grounding Indents Mounting Brackets Shielded	Male Pins Plug	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Solder	2	5 A 20 A
EDAC Inc. 629W13W3240-2NC	UL94 V-0	-55 °C	125 °C	Black			Polybutylene Terephthalate (PBT) Glass Filled	Gold	125 VDC	Housing/Shell (M3)	10	3	Combo D-Sub	Copper Alloy	Through Hole Right Angle		Signal and Power	Grounding Indents Mounting Brackets Shielded	Male Pins Plug	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Solder	2	5 A 20 A	Flash
EDAC Inc. 629W13W3340-2N4	UL94 V-0	-55 °C	125 °C	Black	0.38 µm	15 µin	Polybutylene Terephthalate (PBT) Glass Filled	Gold	125 VDC	Housing/Shell (4-40)	10	3	Combo D-Sub	Copper Alloy	Panel Mount Right Angle Through Hole		Signal and Power	Grounding Indents Mounting Brackets Shielded	Male Pins Plug	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Solder	2	5 A 20 A
EDAC Inc. 629W13W3340-1NB	UL94 V-0	-55 °C	125 °C	Black	0.38 µm	15 µin	Polybutylene Terephthalate (PBT) Glass Filled	Gold	125 VDC	Housing/Shell (M3)	10	3	Combo D-Sub	Copper Alloy	Panel Mount Right Angle Through Hole	10A 5A	Signal and Power	Board Lock Filter Grounding Indents Mounting Brackets Shielded	Male Pins Plug	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Solder	2
EDAC Inc. 629W13W3640-2NA	UL94 V-0	-55 °C	125 °C	Black	0.76 Ám	30 Áin	Polybutylene Terephthalate (PBT) Glass Filled	Gold	125 VDC	Housing/Shell (M3)	10	3	Combo D-Sub	Copper Alloy	Panel Mount Right Angle Through Hole		Signal and Power	Grounding Indents Shielded	Male Pins Plug	IP67 - Dust Tight Waterproof	Nickel Plated Steel	13C3 13W3 B DB	3	Solder	2	5 A 20 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 21.59

Description

General part information

629W13W Series

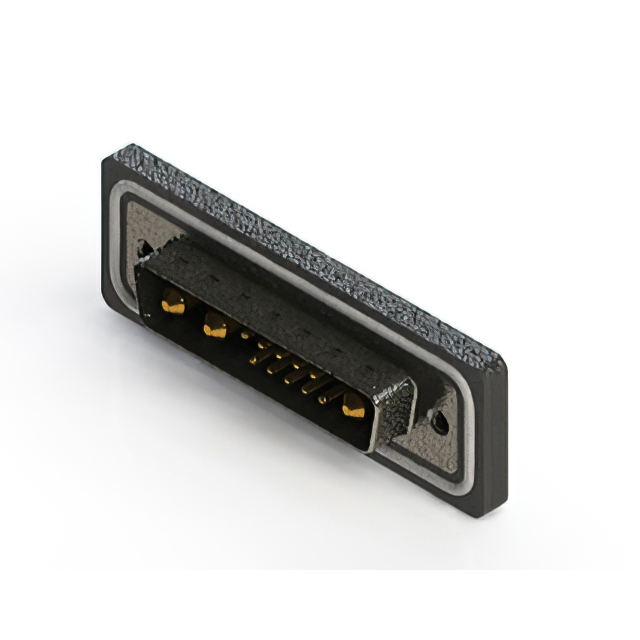

13 (10 + 3 Power) Position D-Sub, Combo Plug, Male Pins Connector
