Description
General part information

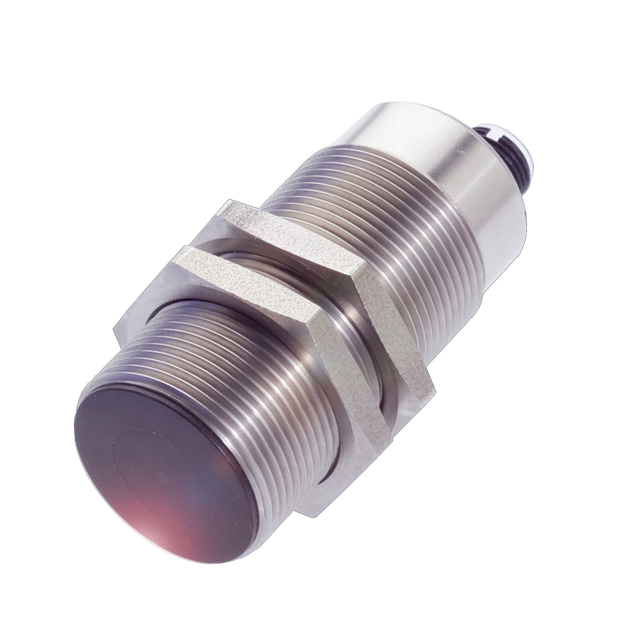

BCS00MR
SENSOR PROX CAP 2-15MM MOD
Technical Specifications
Parameters and characteristics for this part
| Specification | BCS00MR |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Polybutylene Terephthalate (PBT), Stainless Steel |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Module |
| Sensing Distance Maximum | 0.591 " |
| Sensing Distance Minimum | 0.079 " |
| Sensor Type | Capacitive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
