RG-400-4

Active

Remington Industries

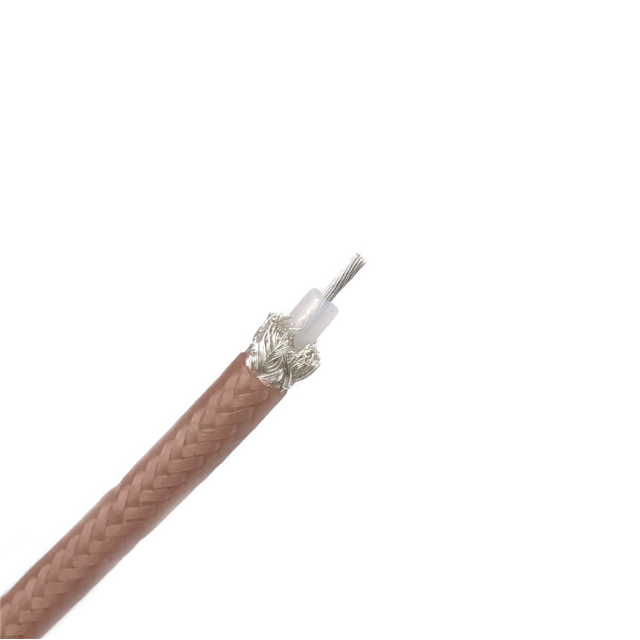

RG-400/U COAX CABLE 4' LENGTH

Search across all available documentation for this part.

Active

Remington Industries

RG-400/U COAX CABLE 4' LENGTH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RG-400-4	RG-400 Series

Cable Group	RG-400	RG-400
Cable Type	Coaxial	Coaxial
Conductor Material	Copper, Silver Coated	Copper, Silver Coated
Conductor Strand [custom]	19 Strands	19 Strands
Conductor Strand [diameter]	0.008 in	0.008 in
Dielectric Diameter [diameter]	2.95 mm	2.95 mm
Dielectric Diameter [diameter]	0.116 in	0.116 in
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Features	Direct Burial	Direct Burial
Impedance	50 Ohms	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.195 in	0.195 in
Jacket (Insulation) Diameter [diameter]	4.95 mm	4.95 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Tan	Tan
Length	-	25 ft
Length	-	7.62 m
Length [x]	1.22 m	1.22 - 300 mm
Length [x]	4 ft	1 - 4 ft
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Material	Copper, Silver Coated	Copper, Silver Coated
Shield Type	Double Braid	Double Braid
Usage	Network, RF Signal	Network, RF Signal

RG-400/U COAX CABLE 25' LENGTH

Part	Conductor Material	Cable Group	Usage	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Impedance	Features	Jacket Color	Cable Type	Conductor Strand [custom]	Conductor Strand [diameter]	Shield Material	Dielectric Material	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Length	Length	Length [x]	Length [x]
Remington Industries RG-400-25	Copper, Silver Coated	RG-400	Network, RF Signal	2.95 mm	0.116 in	50 Ohms	Direct Burial	Tan	Coaxial	19 Strands	0.008 in	Copper, Silver Coated	Polytetrafluoroethylene (PTFE)	Double Braid	-55 °C	200 °C	0.195 in	4.95 mm	Fluorinated Ethylene-Propylene (FEP)	25 ft	7.62 m
Remington Industries RG-400-1	Copper, Silver Coated	RG-400	Network, RF Signal	2.95 mm	0.116 in	50 Ohms	Direct Burial	Tan	Coaxial	19 Strands	0.008 in	Copper, Silver Coated	Polytetrafluoroethylene (PTFE)	Double Braid	-55 °C	200 °C	0.195 in	4.95 mm	Fluorinated Ethylene-Propylene (FEP)			1 ft	300 mm
Remington Industries RG-400-4	Copper, Silver Coated	RG-400	Network, RF Signal	2.95 mm	0.116 in	50 Ohms	Direct Burial	Tan	Coaxial	19 Strands	0.008 in	Copper, Silver Coated	Polytetrafluoroethylene (PTFE)	Double Braid	-55 °C	200 °C	0.195 in	4.95 mm	Fluorinated Ethylene-Propylene (FEP)			4 ft	1.22 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 49.72

General part information

Coaxial Cable RG-400 4.0' (1.22m) 50 Ohms
