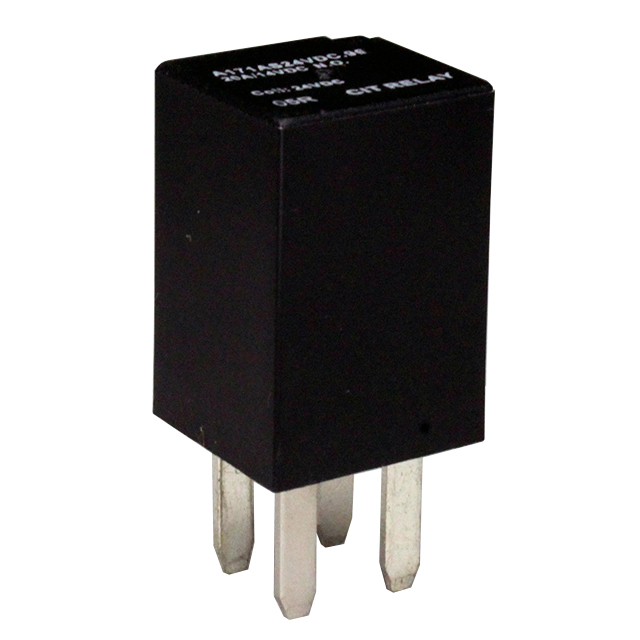

A171AHS24VDC.96D
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPST 30A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A171AHS24VDC.96D
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPST 30A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A171AHS24VDC.96D |
|---|---|
| Coil Current | 40 mA |
| Coil Power | 960 mW |
| Coil Resistance | 600 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 30 A |
| Features | Sealed - Fully, Diode |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 5 ms |
| Switching Voltage | 75 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.67 | |
| 10 | $ 2.50 | |||
| 25 | $ 2.22 | |||
| 40 | $ 2.11 | |||
| 200 | $ 2.00 | |||
| 400 | $ 1.78 | |||
| 600 | $ 1.67 | |||
| 1000 | $ 1.56 | |||
| 5000 | $ 1.50 | |||
Description
General part information
A171AHS24VDC.96D
RELAY AUTOMOTIVE SPST 30A 24V
