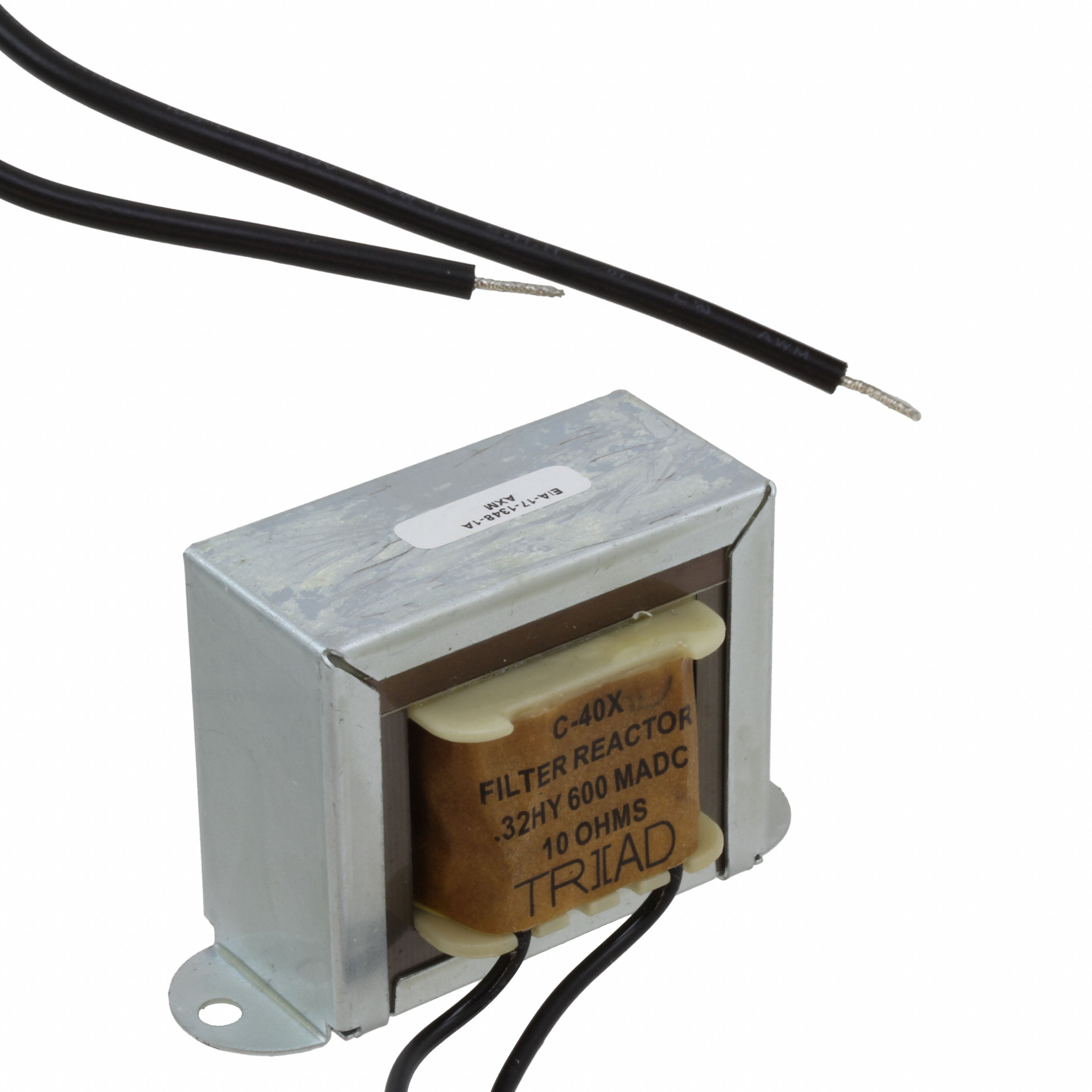

C-40X
ActiveTriad Magnetics
FIXED IND 320MH 600MA 10 OHM
C-40X
ActiveTriad Magnetics
FIXED IND 320MH 600MA 10 OHM
Description
General part information
C-40X
320 mH Unshielded Wirewound Inductor 600 mA 10Ohm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | C-40X |
|---|---|
| Current Rating | 600 mA |
| DC Resistance (DCR) | 10 Ohm |
| Height - Seated (Max) | 1.94 in |
| Inductance | 320 mH |
| Inductance Frequency - Test | 120 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 3.312 in |
| Size / Dimension Width | 2 in |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 50 % |
| Type | Wirewound |
