0331 06
ActiveLumberg Inc

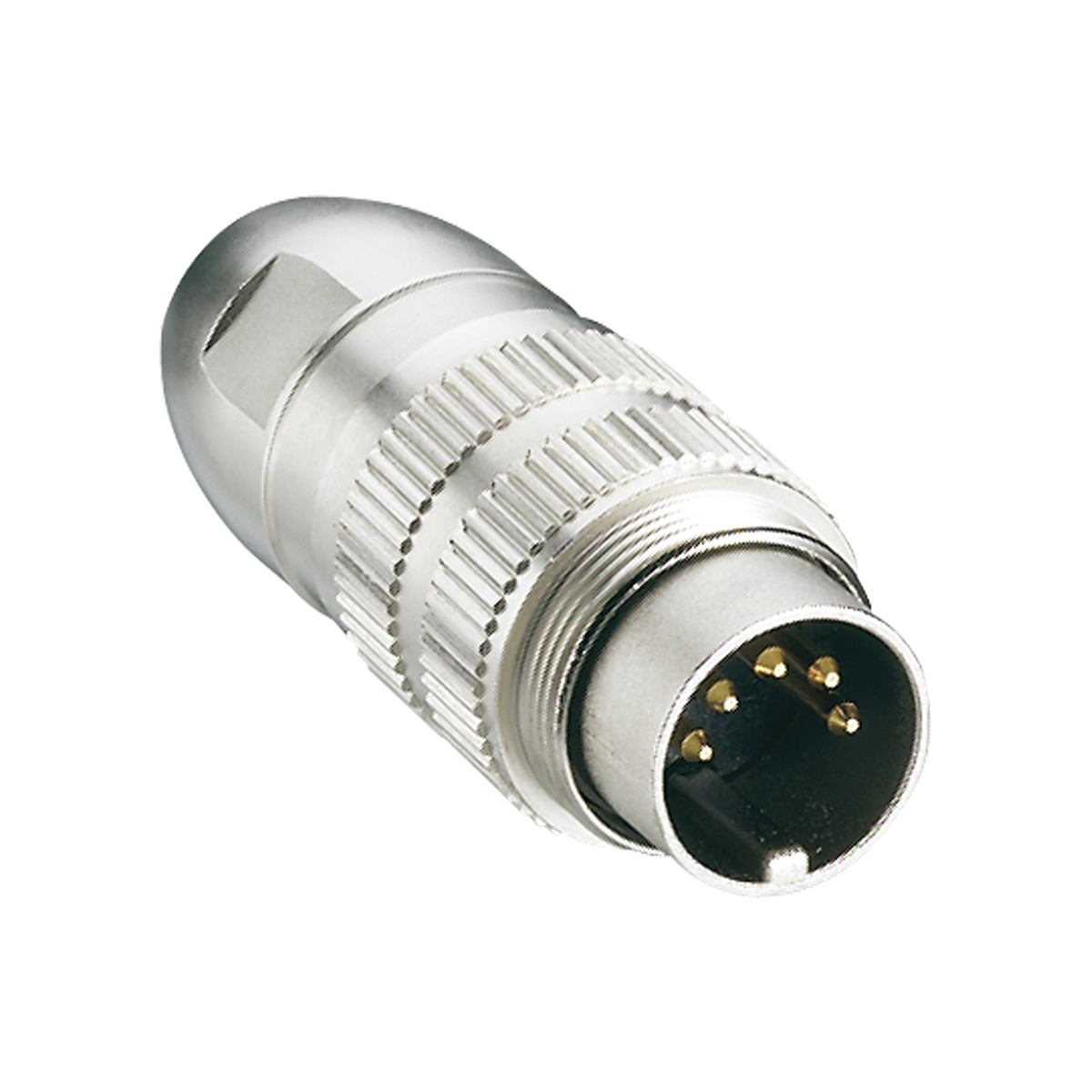

CIRCULAR CONNECTOR, 0331 SERIES, CABLE MOUNT RECEPTACLE, 6 CONTACTS, SOLDER PIN, THREADED
0331 06
ActiveLumberg Inc
CIRCULAR CONNECTOR, 0331 SERIES, CABLE MOUNT RECEPTACLE, 6 CONTACTS, SOLDER PIN, THREADED
Description
General part information
0331 06
6 Position Circular Connector Plug, Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 0331 06 |
|---|---|
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Silver, Gold |
| Fastening Type | Threaded |
| Ingress Protection | IP68 |
| Material Flammability Rating | UL94 |
| Mounting Type | Free Hanging (In-Line), Cable Mount |
| Number of Positions | 6 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M16 |
| Termination | Solder |
