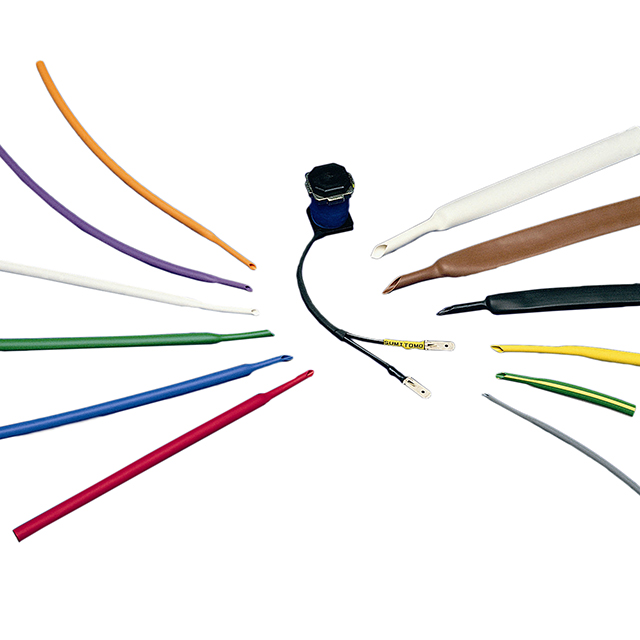

B2 1 BLACK SPL

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 1" BLACK FOOT

Search across all available documentation for this part.

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 1" BLACK FOOT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	B2 1 BLACK SPL	B2 1 Series

Color	Black	Black, White, Yellow
Features	UV Resistant, Flame Retardant	UV Resistant, Flame Retardant
Inner Diameter - Recovered [diameter]	0.5 in	0.5 in
Inner Diameter - Recovered [diameter]	12.7 mm	12.7 mm
Inner Diameter - Supplied [diameter]	26.6 mm	26.6 mm
Inner Diameter - Supplied [diameter]	1.047 in	1.047 in
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length	-	1.22 m
Length	-	4 ft
Material	Polyolefin (PO), Irradiated	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.89 mm	0.89 mm
Recovered Wall Thickness	0.035 in	0.035 in
Shrink Temperature	90 °C	90 °C
Shrinkage Ratio	2 to 1	2 to 1
Spool Size	61 m	61 m
Spool Size	200 '	200 '
Type	Tubing, Flexible	Tubing, Flexible

HEATSHRINK 1" BLACK 1=1PC

Part	Features	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Operating Temperature [Max]	Operating Temperature [Min]	Shrinkage Ratio	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Material	Spool Size	Spool Size	Length
Sumitomo Electric Interconnect Products, Inc. B2 1 BLACK 4FT	Flame Retardant, UV Resistant	0.5 in	12.7 mm	1.22 m	4 ft	0.89 mm	0.035 in	90 °C	135 °C	-55 °C	2 to 1	Black	26.6 mm	1.047 in	Tubing, Flexible	Polyolefin (PO), Irradiated
Sumitomo Electric Interconnect Products, Inc. B2 1 WHITE SPL	Flame Retardant	0.5 in	12.7 mm			0.89 mm	0.035 in	90 °C	135 °C	-55 °C	2 to 1	White	26.6 mm	1.047 in	Tubing, Flexible	Polyolefin (PO), Irradiated	61 m	200 '	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 1 BLACK SPL	Flame Retardant, UV Resistant	0.5 in	12.7 mm			0.89 mm	0.035 in	90 °C	135 °C	-55 °C	2 to 1	Black	26.6 mm	1.047 in	Tubing, Flexible	Polyolefin (PO), Irradiated	61 m	200 '	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 1 YELLOW SPL	Flame Retardant	0.5 in	12.7 mm			0.89 mm	0.035 in	90 °C	135 °C	-55 °C	2 to 1	Yellow	26.6 mm	1.047 in	Tubing, Flexible	Polyolefin (PO), Irradiated	61 m	200 '	Enter Number of Feet in Order Quantity

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 1.047" (26.60mm) 2 to 1 Black Enter Number of Feet in Order Quantity
