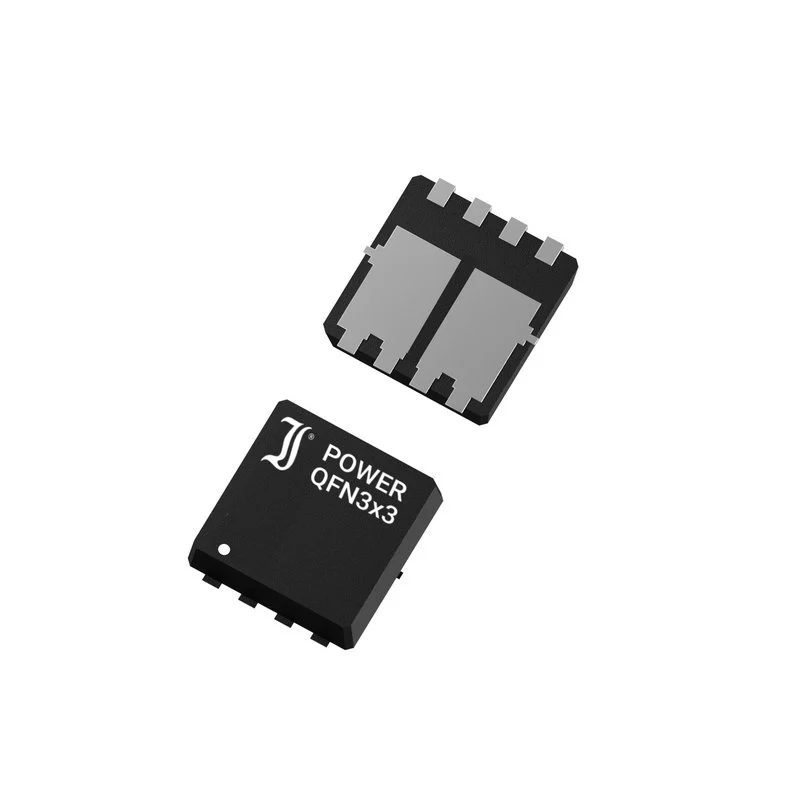

Specification	DI017P03PT2-AQ

Channel Count	2
Configuration	P-Channel
Configuration - Features	Dual
Current - Continuous Drain (Id) (Tc)	17 A
Drain to Source Voltage (Vdss)	30 V
FET Feature	Logic Level Gate
Gate Charge (Max)	19.8 nC
Grade	Automotive
Input Capacitance (Ciss) (Max)	1150 pF
Mounting Type	Surface Mount
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-55 °C
Package / Case	8-PowerVDFN
Package Length	3 mm
Package Name	8-QFN
Package Width	3 mm
Power - Max (Tc)	13.1 W
Qualification	AEC-Q101
Rds On (Max)	30 mOhm
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max)	2.5 V
