28A2029-0A0
ActiveLaird Technologies EMI

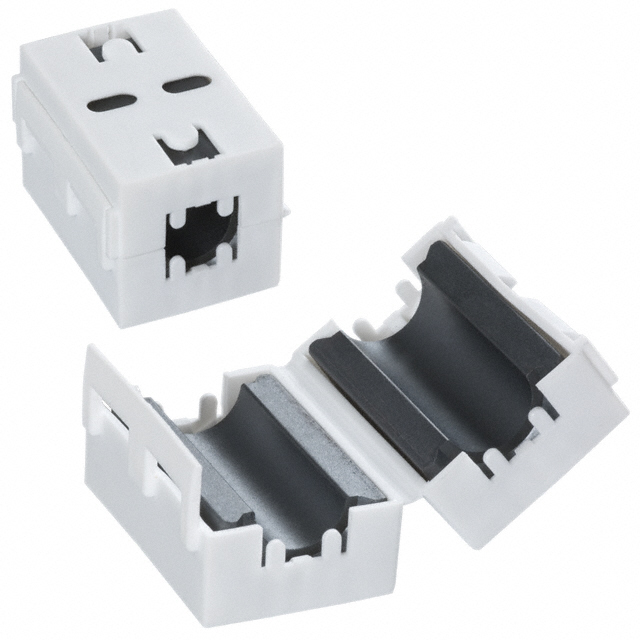

FERRITE CORE 250 OHM HINGED
28A2029-0A0
ActiveLaird Technologies EMI
FERRITE CORE 250 OHM HINGED
Description
General part information
28A2029-0A0
Hinged (Snap On) Free Hanging Ferrite Core 250Ohm @ 100MHz ID 0.394" W x 0.170" H (10.00mm x 4.30mm) OD 0.877" W x 0.860" H (22.28mm x 21.84mm) Length 1.290" (32.77mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 28A2029-0A0 |
|---|---|
| Design | Hinged (Snap On) |
| Impedance | 250 Ohm |
| Inner Dimension Height | 0.17 in |
| Inner Dimension Width | 0.394 in |
| Length | 1.29 in |
| Material | 28 |
| Material Temperature Rating | 28 °C |
| Mounting Type | Free Hanging |
| Outer Dimension Height | 0.86 in |
| Outer Dimension Width | 0.877 in |
| Type | Round |
