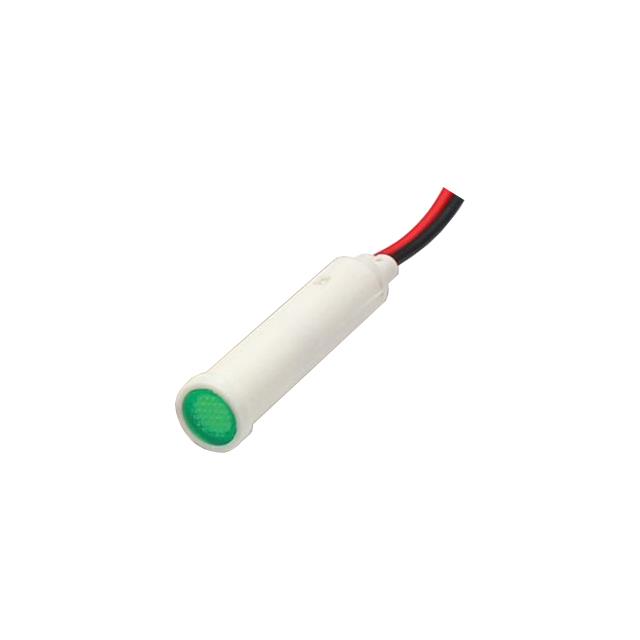

FL1P-8QW-1-G110V

Active

Mallory Sonalert Products Inc.

LED GRN 8MM SNAP 110VAC/DC STK

Search across all available documentation for this part.

Active

Mallory Sonalert Products Inc.

LED GRN 8MM SNAP 110VAC/DC STK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FL1P-8QW-1-G110V	FL1P-8 Series

Current	15 mA	15 mA
Ingress Protection	IP50	IP50, IP65
Lamp Color	Green	Red, Green, Yellow, White, Blue
Lens Color	Green	Red, Green, Yellow, White, Blue
Lens Size	-	T-3 1/8
Lens Size	-	10 mm
Lens Size [diameter]	9.1 mm	9.1 - 9.2 mm
Lens Style	-	Round with Domed Top
Millicandela Rating [Max]	10000 mcd	1500 - 10000 mcd
Millicandela Rating [Min]	8000 mcd	1000 - 8000 mcd
Panel Cutout Dimensions	0.31 "	0.31 - 0.315 "
Panel Cutout Dimensions	8 mm	8 mm
Panel Cutout Shape	Round	Round
Ratings	AC/DC	AC/DC
Termination Style	Wire Leads - 7.3" (185.42mm)	Quick Connect - 0.110" (2.8mm), Wire Leads - 7.3" (185.42mm), Quick Connect
Type	LED	LED
Viewing Angle	60 °	35 - 60 °
Voltage	110 V	3 - 110 V

LED RED 8MM NUT 12VAC/DC STK

Part	Millicandela Rating [Max]	Millicandela Rating [Min]	Lens Color	Type	Termination Style	Voltage	Lens Size [diameter]	Ratings	Lens Style	Viewing Angle	Panel Cutout Shape	Lamp Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Ingress Protection	Current	Lens Size	Lens Size
Mallory Sonalert Products Inc. FL1P-8NJ-1-R12V	1500 mcd	1000 mcd	Red	LED	Quick Connect - 0.110" (2.8mm)	12 V	9.2 mm	AC/DC	Round with Domed Top	35 °	Round	Red	0.31 "	8 mm	IP50
Mallory Sonalert Products Inc. FL1P-8QW-1-G110V	10000 mcd	8000 mcd	Green	LED	Wire Leads - 7.3" (185.42mm)	110 V	9.1 mm	AC/DC		60 °	Round	Green	0.31 "	8 mm	IP50	15 mA
Mallory Sonalert Products Inc. FL1P-8NW-1-G110V	10000 mcd	8000 mcd	Green	LED	Wire Leads - 7.3" (185.42mm)	110 V		AC/DC	Round with Domed Top	60 °	Round	Green	0.31 "	8 mm	IP50		T-3 1/8	10 mm
Mallory Sonalert Products Inc. FL1P-8NW-1-Y48V	1500 mcd	1000 mcd	Yellow	LED	Wire Leads - 7.3" (185.42mm)	48 V		AC/DC	Round with Domed Top	35 °	Round	Yellow	0.315 in	8 mm	IP50		T-3 1/8	10 mm
Mallory Sonalert Products Inc. FL1P-8NW-1-W24V			White	LED	Wire Leads - 7.3" (185.42mm)	24 V		AC/DC	Round with Domed Top		Round	White	0.315 in	8 mm	IP50		T-3 1/8	10 mm
Mallory Sonalert Products Inc. FL1P-8NJ-1-B3V	3000 mcd	2000 mcd	Blue	LED	Quick Connect	3 V	9.2 mm	AC/DC	Round with Domed Top	35 °	Round	Blue	0.315 in	8 mm	IP65

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Green 60° 110V 15mA Wire Leads - 7.3" (185.42mm)
