Description

General part information

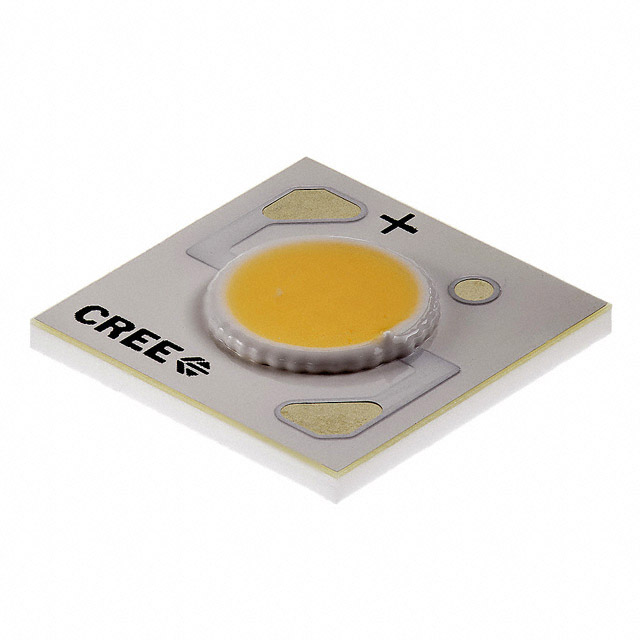

CXA1304 Series

The XLamp® CXA1304 LED array expands Cree’s family of high-flux, multi-die arrays in a smaller, easy-to-use platform. With XLamp LED lighting-class reliability, the CXA1304’s small, uniform emitting surface enables both directional and non-directional ligAvailable in 4-step, 3-step and 2-step EasyWhite® bins at 2700 K, 3000 K, 3500 K, 4000 K & 5000 K CCT and 4-step EasyWhite bins at 5700 K & 6500 K CCT • Available in ANSI white bins at 4000 K, 5000 K, 5700 K & 6500 K CCT • Available in 70-, 80-, 90- and 9

Technical Specifications

Parameters and characteristics for this part

Specification	CXA1304-0000-000F00C235H

CCT (K)	3500 K
CCT Description	2-Step MacAdam Ellipse
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max	500 mA
Current - Test	200 mA
Height	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) Diameter	6 mm
Lumens/Watt	127 lm/W
Luminous Flux	458 lm
Luminous Flux (Maximum)	475 lm
Luminous Flux (Minimum)	440 lm
Size / Dimension Length	13.35 mm
Size / Dimension Width	13.35 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	18 V

CXA1304 Series

...

Part	Lumens/Watt	Type	Temperature - Test	Luminous Flux	Luminous Flux (Minimum)	Luminous Flux (Maximum)	Current - Max	CCT (K)	Lens Type	Current - Test	Size / Dimension Length	Size / Dimension Width	CRI (Color Rendering Index)	Color	Height	Configuration	Voltage - Forward (Vf) (Typ)	Light Emitting Surface (LES) Diameter	Viewing Angle	CCT Description
CreeLED, Inc. CXA1304-0000-000C00C20E2	127 lm/W	Chip On Board (COB)	85 °C	458 lm	440 lm	475 lm	1 A	5700 K	Flat	400 mA	13.35 mm	13.35 mm	70	Cool White	1.7 mm	Square	9 V	6 mm	115 °
CreeLED, Inc. CXA1304-0000-000F0U9440F	89 lm/W	Chip On Board (COB)	85 °C	319 lm	308 lm	330 lm	500 mA	4000 K	Flat	200 mA	13.35 mm	13.35 mm	90	Neutral White	1.7 mm	Square	18 V	6 mm	115 °	4-Step MacAdam Ellipse
CreeLED, Inc. CXA1304-0000-000F0Y8227H	72 lm/W	Chip On Board (COB)	85 °C	259 lm	249 lm	268 lm	500 mA	2700 K	Flat	200 mA	13.35 mm	13.35 mm	93	Warm White	1.7 mm	Square	18 V	6 mm	115 °	2-Step MacAdam Ellipse
CreeLED, Inc. CXA1304-0000-000F0Y940E8	86 lm/W	Chip On Board (COB)	85 °C	310 lm	290 lm	330 lm	500 mA	2700 K	Flat	200 mA	13.35 mm	13.35 mm	93	Warm White	1.7 mm	Square	18 V	6 mm	115 °
CreeLED, Inc. CXA1304-0000-000N0UB250H	107 lm/W	Chip On Board (COB)	85 °C	395 lm	380 lm	410 lm	250 mA	5000 K	Flat	100 mA	13.35 mm	13.35 mm	90	Cool White	1.7 mm	Square	37 V	6 mm	115 °	2-Step MacAdam Ellipse
CreeLED, Inc. CXA1304-0000-000F0Y9227G	75 lm/W	Chip On Board (COB)	85 °C	270 lm	250 lm	290 lm	500 mA	2700 K	Flat	200 mA	13.35 mm	13.35 mm	93	Warm White	1.7 mm	Square	18 V	6 mm	115 °	3-Step MacAdam Ellipse
CreeLED, Inc. CXA1304-0000-000C0HB20E3	110 lm/W	Chip On Board (COB)	85 °C	395 lm	380 lm	410 lm	1 A	5000 K	Flat	400 mA	13.35 mm	13.35 mm	80	Cool White	1.7 mm	Square	9 V	6 mm	115 °

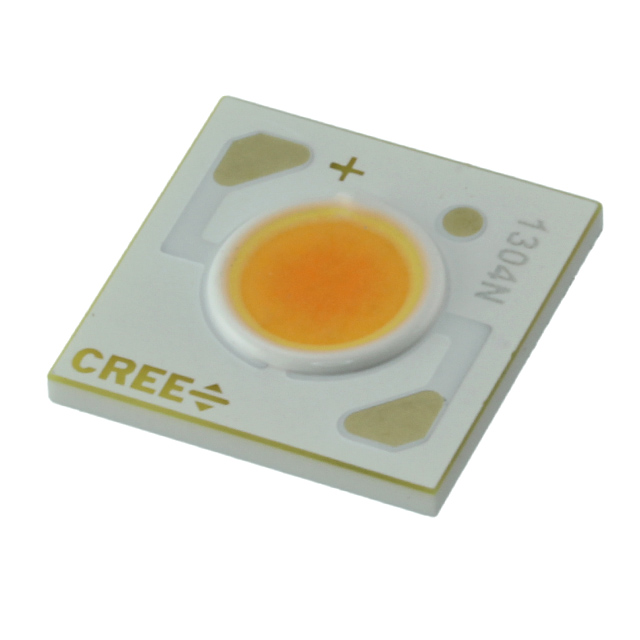

CreeLED, Inc. CXA1304-0000-000C0HB40E1	118 lm/W	Chip On Board (COB)	85 °C	425 lm	410 lm	440 lm	1 A	6500 K	Flat	400 mA	13.35 mm	13.35 mm	80	Cool White	1.7 mm	Square	9 V	6 mm	115 °
CreeLED, Inc. CXA1304-0000-000N0HC20E2	124 lm/W	Chip On Board (COB)	85 °C	458 lm	440 lm	475 lm	250 mA	5700 K	Flat	100 mA	13.35 mm	13.35 mm	80	Cool White	1.7 mm	Square	37 V	6 mm	115 °
CreeLED, Inc. CXA1304-0000-000C00C250H	127 lm/W	Chip On Board (COB)	85 °C	458 lm	440 lm	475 lm	1 A	5000 K	Flat	400 mA	13.35 mm	13.35 mm	70	Cool White	1.7 mm	Square	9 V	6 mm	115 °	2-Step MacAdam Ellipse
