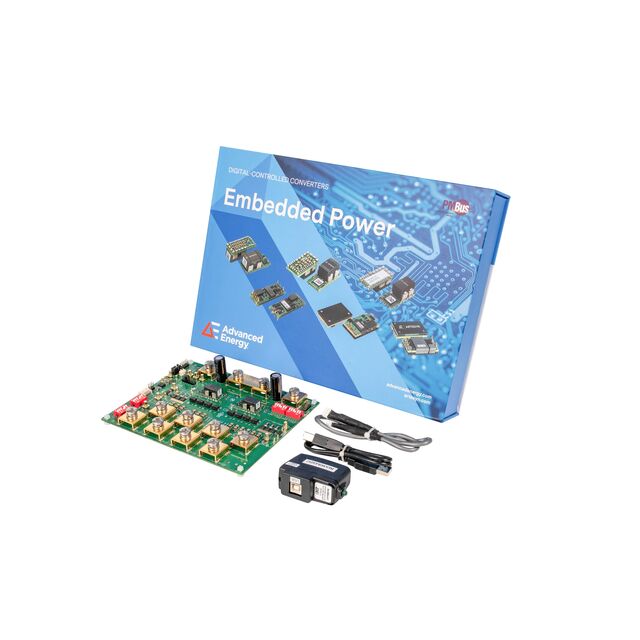

LGA110-EVAL-KIT
ActiveARTESYN / Advanced Energy
THIS IS THE EVALUATION KIT FOR T
LGA110-EVAL-KIT
ActiveARTESYN / Advanced Energy
THIS IS THE EVALUATION KIT FOR T
Description
General part information
LGA110-EVAL-KIT
LGA110D - DC/DC Converter 3, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | LGA110-EVAL-KIT |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 55 A |
| Main Purpose | DC/DC Converter |
| Non-Isolated Output Count | 3 |
| Output Type | Non-Isolated |
| Power - Output | 350 W |
| Supplied Contents | Board(s) |
| Total Output Count | 3 |
| Utilized IC / Part | LGA110D |
| Voltage - Input (Maximum) | 5 V |
| Voltage - Input (Minimum) | 0.5 V |
| Voltage - Output (Max) | 5.2 V |
| Voltage - Output (Min) | 0.5 V |
