Description
General part information

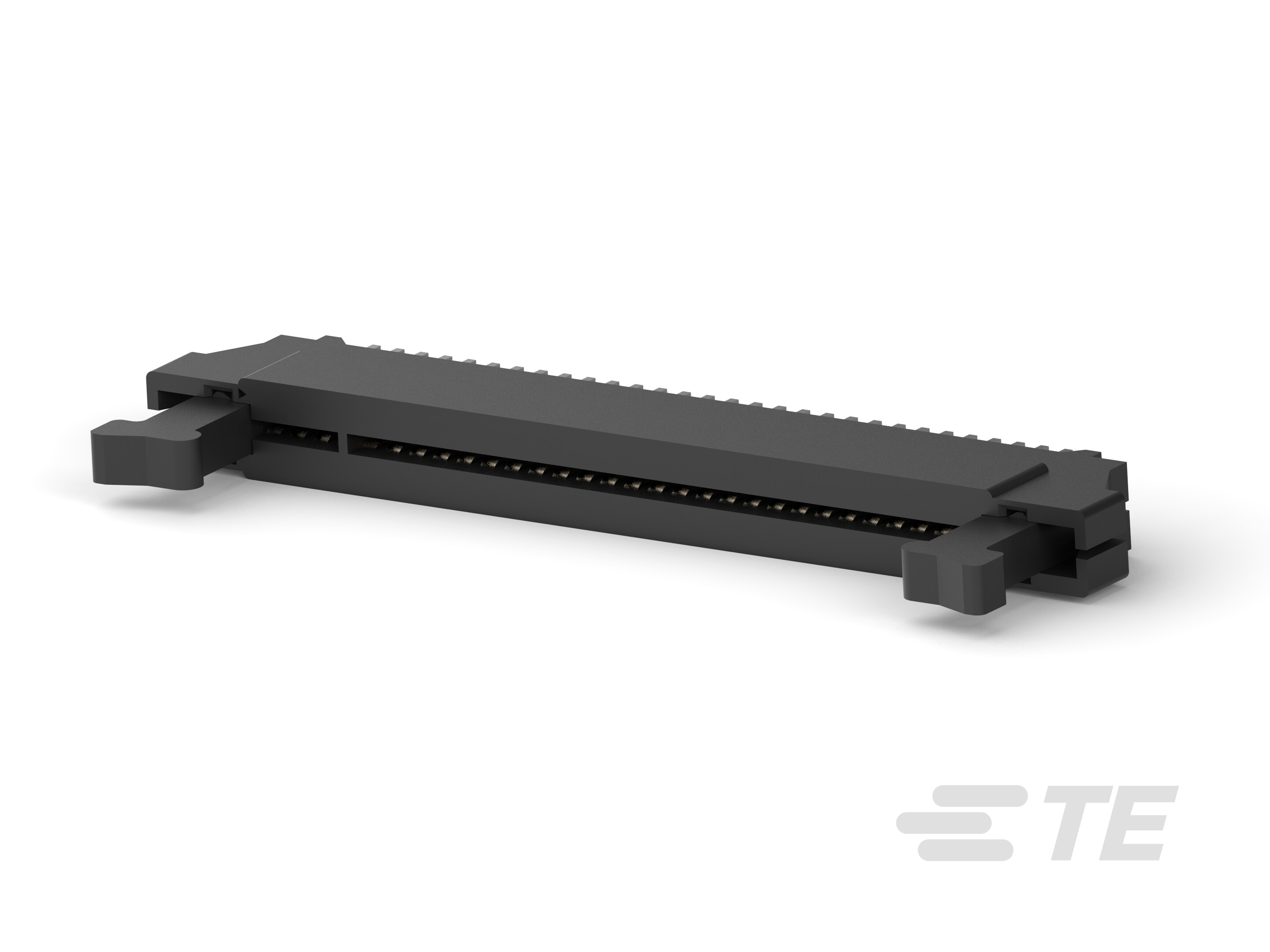

6489651-2
Board-to-Board Card Edge Power Connector, 62 Position, 2.54 mm [.1 in] Centerline, Power & Signal, 62 Power Positions, 0 Signal Positions
Technical Specifications
Parameters and characteristics for this part
| Specification | 6489651-2 |
|---|---|
| Card Thickness (Max) | 0.07 in |
| Card Thickness (Min) | 0.054 in |
| Card Type | Non Specified, Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Material | Copper Alloy |
| Features | Latches |
| Gender | Female |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions (Loaded) | 61 |
| Number of Positions (Total) | 62 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
