153222

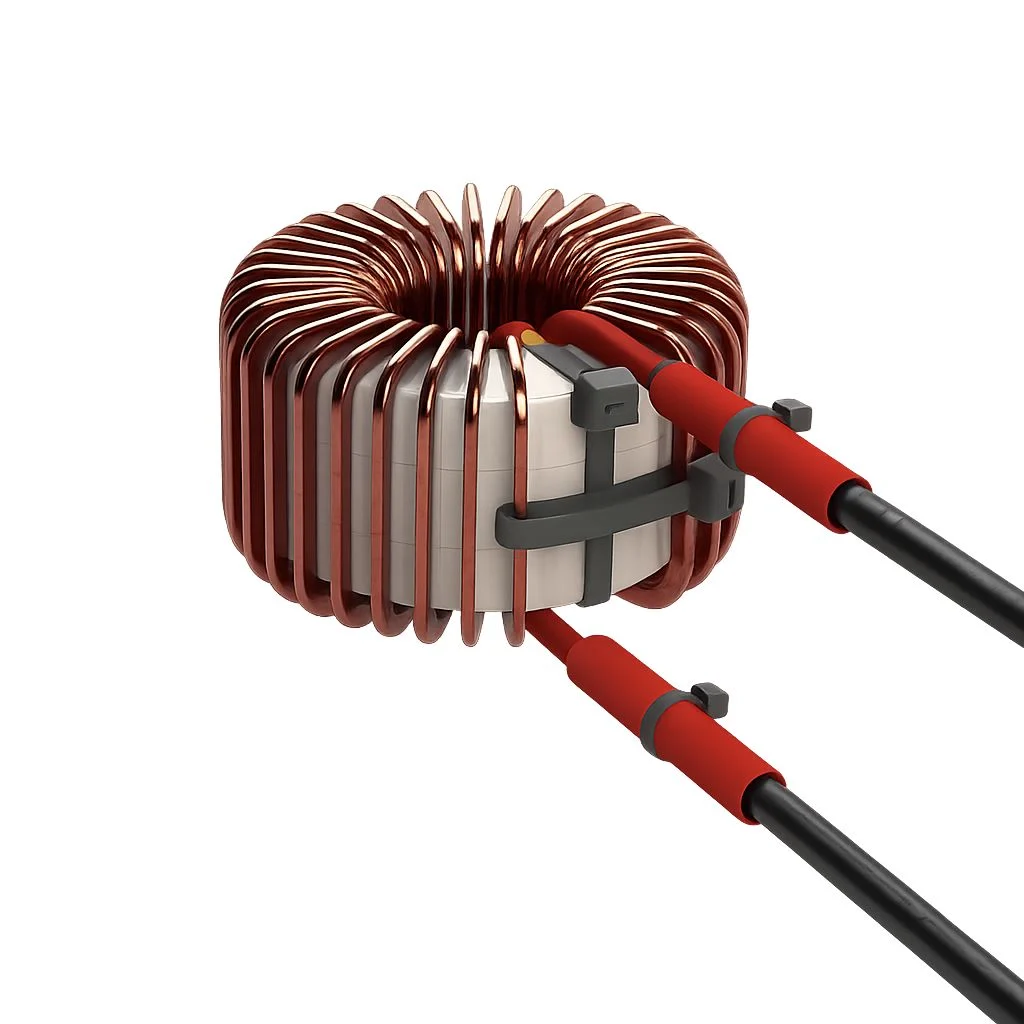

ActiveBourns Inc.
KLL-R 75-065-0,165
153222
ActiveBourns Inc.
KLL-R 75-065-0,165
Description
General part information
153222
KLL-R 75-065-0,165
Technical Specifications
Parameters and characteristics for this part
| Specification | 153222 |
|---|---|
| Current Rating | 65 A |
| DC Resistance (DCR) (Max) | 6 mOhm |
| Height - Seated (Max) | 2.598 in |
| Inductance | 165 µH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2 PC Pin, No Base, Vertical |
| Package Name | Vertical, No Base |
| Pad Count | 2 PC Pin |
| Shielding | Unshielded |
| Size / Dimension Diameter | 4.134 in |
| Tolerance | 20 % |
| Type | Toroidal |
