28B0315-100
ActiveLaird Technologies EMI
FERRITE 140 OHM HINGED 33MM X 0.
28B0315-100
ActiveLaird Technologies EMI
FERRITE 140 OHM HINGED 33MM X 0.
Description
General part information
28B0315-100

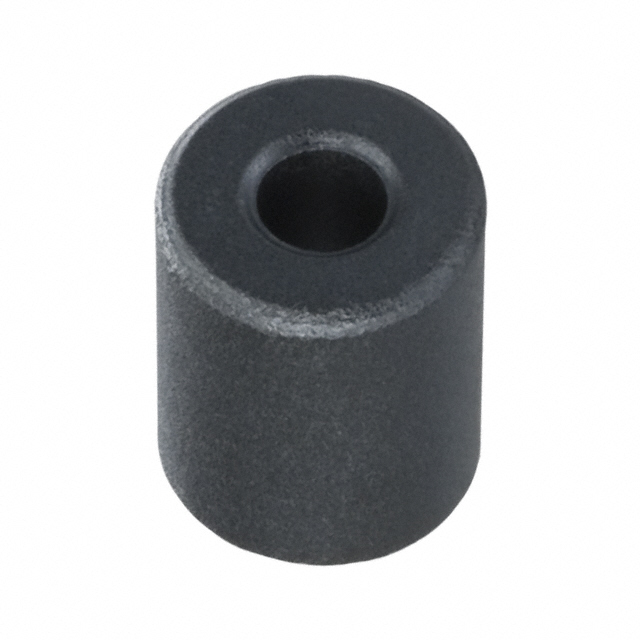

Solid Free Hanging Ferrite Core 158Ohm @ 100MHz ID 0.125" Dia (3.17mm) OD 0.315" Dia (8.00mm) Length 0.396" (10.06mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 28B0315-100 |
|---|---|
| Design | Solid |
| Impedance | 158 Ohm |
| Inner Dimension (Diameter) | 0.125 in |
| Length | 0.396 in |
| Material | 28 |
| Material Temperature Rating | 28 °C |
| Mounting Type | Free Hanging |
| Outer Dimension (Diameter) | 0.315 in |
| Type | Round |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
