1645150
ObsoletePhoenix Contact

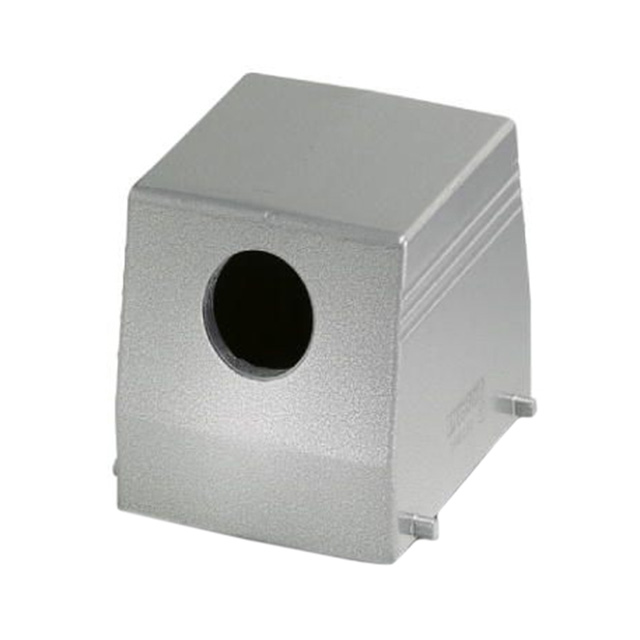

CONN HOOD SIDE ENTRY SZB32 M32
1645150
ObsoletePhoenix Contact
CONN HOOD SIDE ENTRY SZB32 M32
Description
General part information
1645150
Hood Connector Side Entry M32 B32 IP65 - Dust Tight, Water Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | 1645150 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B32 |
| Size / Dimension Height | 3.15 in |
| Size / Dimension Length | 3.681 in |
| Size / Dimension Width | 3.11 in |
| Style | Side Entry |
| Thread Size | M32 |
