B82746S4143A040

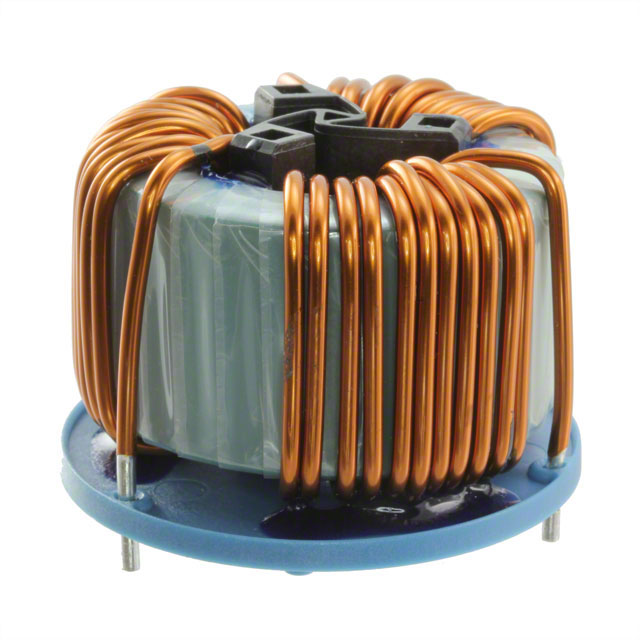

3.2 mH @ 10 kHz 3 Line Common Mode Choke Through Hole 13A DCR 6.5mOhm (Typ)
Technical Specifications
Parameters and characteristics for this part
| Specification | B82746S4143A040 |
|---|---|
| Approval Agency | UR |
| Current Rating (Max) | 13 A |
| DC Resistance (DCR) (Max) | 6.5 mOhm |
| DC Resistance (DCR) (Typ) | 6.5 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.535 in |
| Inductance | 3.2 mH |
| Mounting Type | Through Hole |
| Number of Lines | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 6 PC Pin, Horizontal |
| Package Name | Horizontal |
| Pad Count | 6 PC Pin |
| Size / Dimension Diameter | 2.047 in |
| Voltage Rating - AC | 250V, 440V |
| Voltage Rating - AC | 440 V |
