MC120N/AA
ActiveMcGill Microwave Systems
CIRCULAR CONNECTOR CONTACT, PCS SERIES, PIN, CRIMP
MC120N/AA
ActiveMcGill Microwave Systems
CIRCULAR CONNECTOR CONTACT, PCS SERIES, PIN, CRIMP
Description
General part information

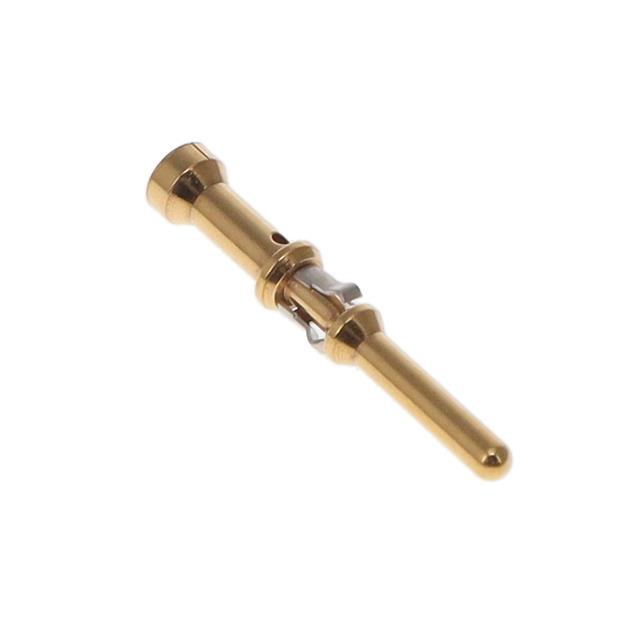

MC120N/AA
Pin Contact Gold Crimp 20-24 AWG Signal, Machined
Technical Specifications
Parameters and characteristics for this part
| Specification | MC120N/AA |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Copper Alloy |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Signal, Machined |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
