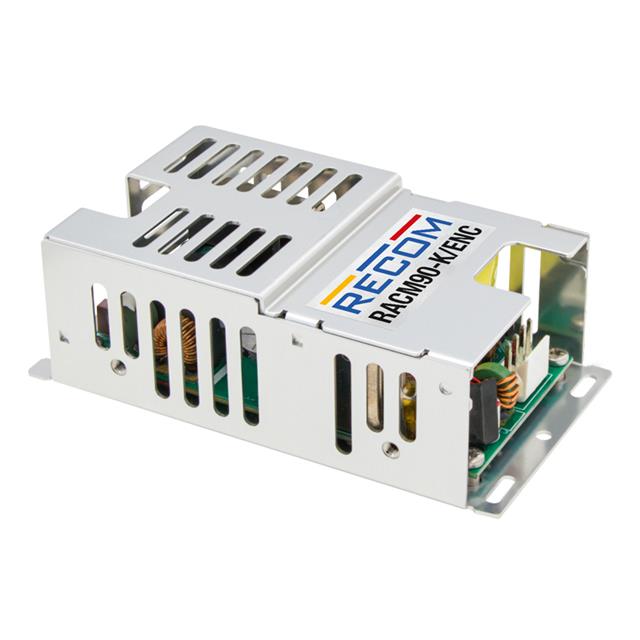

RACM90-15SK/ENC

RACM90-24SK/ENC

Active
Recom Power

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE, HOUSEHOLD & MEDICAL, 1 OUTPUTS, 90 W, 24 V, 3.75 A

Find alt
RACM90-15SK/ENC

RACM90-24SK/ENC

Active
Recom Power

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE, HOUSEHOLD & MEDICAL, 1 OUTPUTS, 90 W, 24 V, 3.75 A

Find alt

Description

General part information

RACM90-24SK/ENC

RACM90-24SK/ENC is a RACM90-K AC/DC power supply series provides 90W output and is Limited Power Source (LPS)-rated according to safety standards for medical, ITE, industrial and household markets. The output is tightly regulated and easy system integration is enabled by a wide compliance margin to EMC standard EN55032 class B. On-board dual fuses are included and the product includes immunity to surges for installation class 3 and over-voltage category OVCIII. Certifications are maintained to 4000m altitude and with a wide operating temperature range, the series is one of the most versatile on the market.

Technical Specifications

Parameters and characteristics for this part

SpecificationRACM90-24SK/ENC
ApplicationsITE (Commercial)
Approval AgencyEAC, CE
Current - Output 13.75 A
Efficiency89 %
FeaturesBaseplate, Universal Input, PFC, DC Input Capable
Minimum Load RequiredNo
Mounting TypeChassis Mount
Number of Outputs1
Operating Temperature (Max)90 °C
Operating Temperature (Min)-40 °C
Power (Watts)90 W
Size / Dimension Height1.52 in
Size / Dimension Length4.66 in
Size / Dimension Width2.47 in
TypeEnclosed
Voltage - Input (AC) Maximum264 V
Voltage - Input (AC) Minimum85 VAC
Voltage - Input (DC) Maximum370 V
Voltage - Input (DC) Minimum120 V
Voltage - Isolation4000 Vpk
Voltage - Output 124 V
