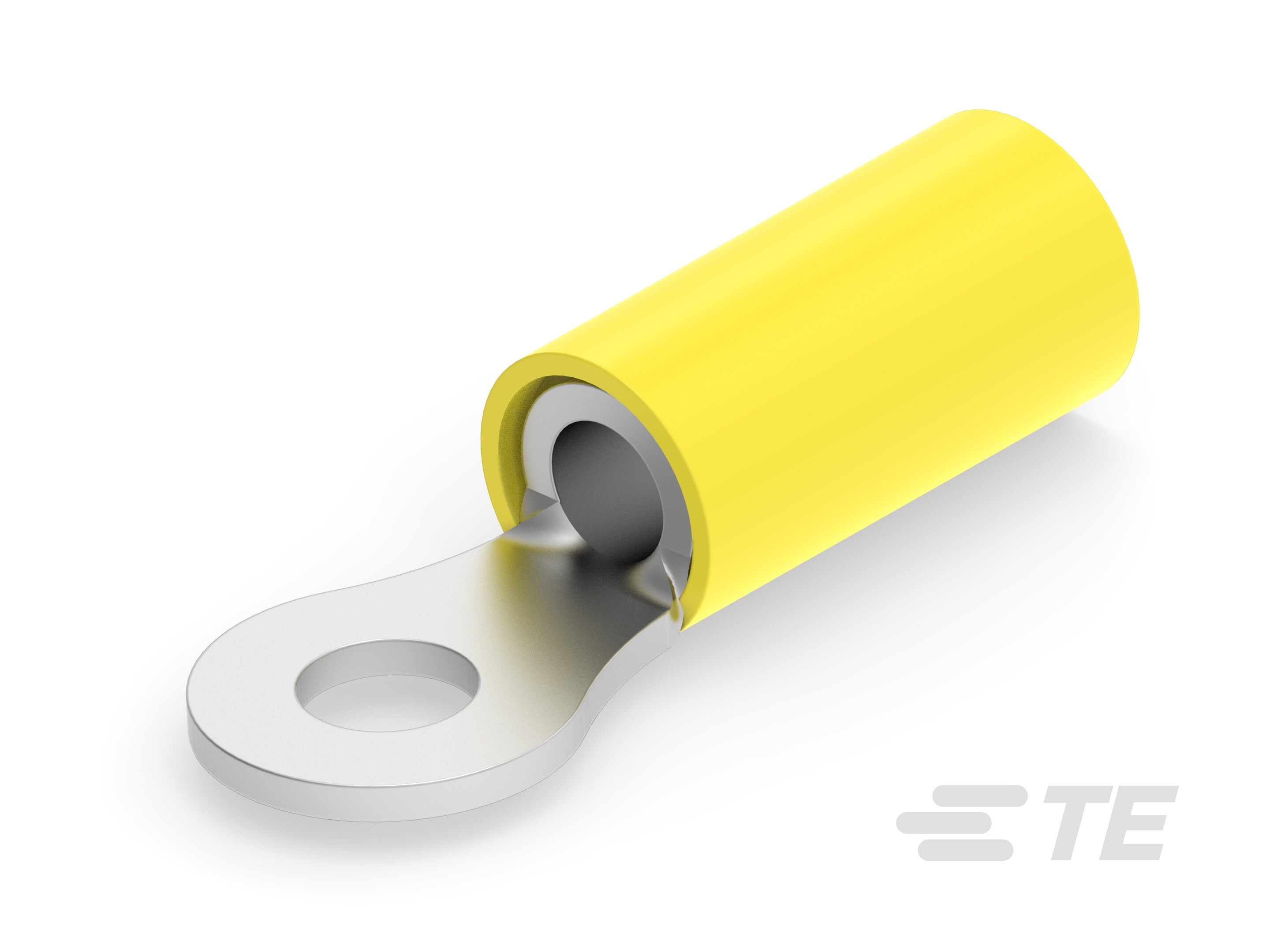

TERMINAL,PIDG R 12-10 8-2-320568-1

2-320568-1

Active
TE Connectivity AMP Connectors

RING TONGUE TERMINAL, M4, #8, 10 AWG, 6 MM², PIDG SERIES, YELLOW

Find alt
TERMINAL,PIDG R 12-10 8-2-320568-1

2-320568-1

Active
TE Connectivity AMP Connectors

RING TONGUE TERMINAL, M4, #8, 10 AWG, 6 MM², PIDG SERIES, YELLOW

Find alt

Description

General part information

2-320568-1

Closed Ring Tongue Terminal, 12 – 10 AWG, #8 / M4 Stud, 4.17 mm [.164 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated

Technical Specifications

Parameters and characteristics for this part

Specification2-320568-1
ColorYellow
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination
InsulationInsulated
Length - Overall1.083 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size8 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.04 in
Width - Outer Edges0.375 in
Wire Gauge (AWG) (Max)12 AWG
Wire Gauge (AWG) (Min)10 AWG
