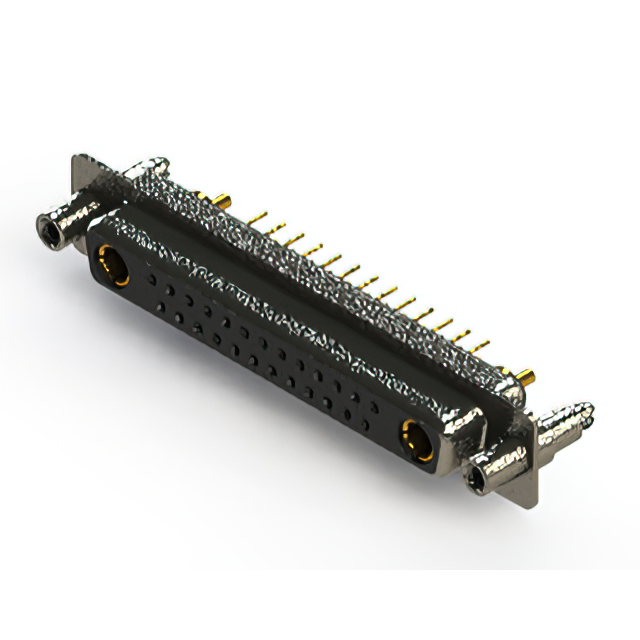

628-27W2624-1T6
ActiveEDAC Inc.
CONN D-SUB RCPT 27POS VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
628-27W2624-1T6
ActiveEDAC Inc.
CONN D-SUB RCPT 27POS VERT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 628-27W2624-1T6 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5A, 10A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Shielded, Board Lock |
| Flange Feature | 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 27W2 |
| Shell Size, Connector Layout | 4 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
628-27W Series
...
| Part | Color | Flange Feature | Termination | Mounting Type | Shell Size, Connector Layout | Shell Size, Connector Layout | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Features | Contact Material | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Type | Contact Finish | Material Flammability Rating | Shell Material, Finish | Voltage Rating | Connector Type | Current Rating (Amps) | Contact Finish Thickness | Current Rating (Amps) | Flange Feature [custom] | Flange Feature [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Black | 4-40 Board Side | Solder | Through Hole | 27W2 | 4 | 2 | 0.76 Ám | 30 Áin | Shielded | Copper Alloy | Combo D-Sub | -55 °C | 125 °C | Polyester Thermoplastic | Signal and Power | Gold | UL94 V-0 | Nickel Plated Steel | 125 VDC | Receptacle Female Sockets | 10A 5A | ||||
EDAC Inc. | Black | Solder | Through Hole | 27W2 | 4 | 2 | Shielded | Copper Alloy | Combo D-Sub | -55 °C | 125 °C | Polyester Thermoplastic | Signal and Power | Gold | UL94 V-0 | Nickel Plated Steel | 125 VDC | Receptacle Female Sockets | Flash | 5 A 40 A | M3 | M3 | ||||
EDAC Inc. | Black | Solder | Through Hole | 27W2 | 4 | 2 | 0.76 Ám | 30 Áin | Shielded | Copper Alloy | Combo D-Sub | -55 °C | 125 °C | Polyester Thermoplastic | Signal and Power | Gold | UL94 V-0 | Nickel Plated Steel | 125 VDC | Receptacle Female Sockets | 10A 5A | M3 | M3 | |||
EDAC Inc. | Black | Board Side (M3) | Solder | Through Hole | 27W2 | 4 | 2 | Shielded | Copper Alloy | Combo D-Sub | -55 °C | 125 °C | Polyester Thermoplastic | Signal and Power | Gold | UL94 V-0 | 125 VDC | Receptacle Female Sockets | Flash | 5 A 20 A | ||||||
EDAC Inc. | Black | 4-40 | Solder | Through Hole | 27W2 | 4 | 2 | Board Lock Shielded | Copper Alloy | Combo D-Sub | -55 °C | 125 °C | Polyester Thermoplastic | Signal and Power | Gold | UL94 V-0 | 125 VDC | Receptacle Female Sockets | Flash | 5 A 20 A | ||||||
EDAC Inc. | Black | 4-40 Board Side | Solder | Through Hole | 27W2 | 4 | 2 | 0.76 Ám | 30 Áin | Shielded | Copper Alloy | Combo D-Sub | -55 °C | 125 °C | Polyester Thermoplastic | Signal and Power | Gold | UL94 V-0 | Nickel Plated Steel | 125 VDC | Receptacle Female Sockets | 5 A 20 A | ||||
EDAC Inc. | Black | Board Side (M3) | Solder | Through Hole | 27W2 | 4 | 2 | 0.76 Ám | 30 Áin | Shielded | Copper Alloy | Combo D-Sub | -55 °C | 125 °C | Polyester Thermoplastic | Signal and Power | Gold | UL94 V-0 | 125 VDC | Receptacle Female Sockets | 10A 5A | |||||
EDAC Inc. | Black | 4-40 | Solder | Through Hole | 27W2 | 4 | 2 | 0.76 Ám | 30 Áin | Board Lock Shielded | Copper Alloy | Combo D-Sub | -55 °C | 125 °C | Polyester Thermoplastic | Signal and Power | Gold | UL94 V-0 | 125 VDC | Receptacle Female Sockets | 10A 5A | |||||
EDAC Inc. | Black | 4-40 Board Side | Solder | Through Hole | 27W2 | 4 | 2 | 0.76 Ám | 30 Áin | Shielded | Copper Alloy | Combo D-Sub | -55 °C | 125 °C | Polyester Thermoplastic | Signal and Power | Gold | UL94 V-0 | 125 VDC | Receptacle Female Sockets | 5 A 20 A | |||||
EDAC Inc. | Black | 4-40 Board Side | Solder | Through Hole | 27W2 | 4 | 2 | 0.76 Ám | 30 Áin | Shielded | Copper Alloy | Combo D-Sub | -55 °C | 125 °C | Polyester Thermoplastic | Signal and Power | Gold | UL94 V-0 | 125 VDC | Receptacle Female Sockets | 10A 5A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 200 | $ 26.61 | |
Description
General part information
628-27W Series
27 (25 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
