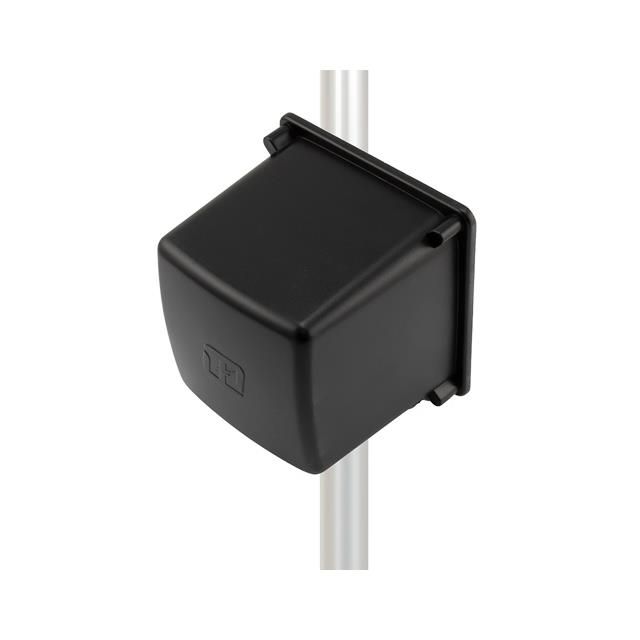

HG2458-10DP-BLK
ActivePasternack
ANTPANEL 2.4 / 5.8 GHZ, 10DBI, B
HG2458-10DP-BLK
ActivePasternack
ANTPANEL 2.4 / 5.8 GHZ, 10DBI, B
Description
General part information
HG2458-10DP-BLK
RF ANTENNA 802.11a/b/g/n/ac, WLAN Flat Panel N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG2458-10DP-BLK |
|---|---|
| Antenna Type | Flat Panel |
| Applications | 802.11a/b/g/n/ac, WLAN |
| Frequency (Band) | 5.375 GHz |
| Frequency (Center) | 2.45 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 2.5 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.85 GHz |
| Frequency Range (Band 2) Minimum | 4.9 GHz |
| Gain | 10 dBi |
| Height (Max) | 3.45 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 2 |
| Power - Max | 50 VA |
| RF Family/Standard | WiFi |
| Termination | N Type Female |
| VSWR | 2 |
