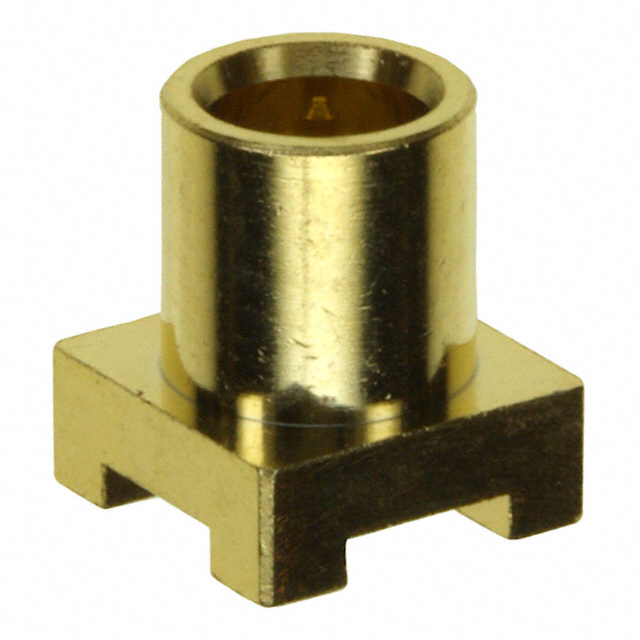

Specification	CONREVMCX001-SMD

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-MCX
Connector Type	Receptacle, Male Pin
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max	6000 MHz
Housing Color	Gold
Impedance	50 Ohm
Insertion Loss	0.1 dB
Mating Cycles	500 cycles
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder

CONREVMCX Series

Part	Body Material	Dielectric Material	Body Finish	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Includes Total Count	Includes	Insertion Loss	Center Contact Plating	Mounting Feature	Shield Termination	Frequency - Max	Contact Termination	Connector Style	Connector Type	Center Contact Material	Housing Color	Mounting Type	Fastening Type	Impedance	Number of Ports	Cable Group	Voltage Rating
TE Connectivity AMP Connectors CONREVMCX002-L	Brass	Polytetrafluoroethylene (PTFE)	Gold	500 cycles	-65 °C	165 °C	3 pcs	Connector Lockwasher Nut	0.2 dB	Gold	Bulkhead Front Side Nut	Solder	6000 MHz	Solder	RP-MCX	Male Pin Receptacle	Phosphor Bronze	Gold	Panel Mount Right Angle Through Hole	Threaded	50 Ohm	1
TE Connectivity AMP Connectors CONREVMCX007	Brass	Polytetrafluoroethylene (PTFE)	Nickel	500 cycles	-65 °C	165 °C	4 pcs	Connector Contact Ferrule Heat Shrink	0.1 dB	Gold		Crimp	6000 MHz	Solder	RP-MCX	Female Socket Plug	Beryllium Copper	Silver	Free Hanging (In-Line)	Push-Pull	50 Ohm	1	RG-174
TE Connectivity AMP Connectors CONREVMCX003.062	Brass	Polytetrafluoroethylene (PTFE)	Gold	500 cycles	-65 °C	165 °C			0.1 dB	Gold		Solder	6000 MHz	Solder	RP-MCX	Male Pin Receptacle	Phosphor Bronze	Gold	Board Edge End Launch	Push-Pull	50 Ohm	1
TE Connectivity AMP Connectors CONREVMCX001	Brass	Polytetrafluoroethylene (PTFE)	Gold	500 cycles	-65 °C	165 °C			0.1 dB	Gold		Solder	6000 MHz	Solder	RP-MCX	Male Pin Receptacle	Brass	Gold	Through Hole	Push-Pull	50 Ohm	1
TE Connectivity AMP Connectors CONREVMCX002-SMD	Brass	Polytetrafluoroethylene (PTFE)	Gold	500 cycles	-65 °C	165 °C			0.1 dB	Gold		Solder	6000 MHz	Solder	RP-MCX	Male Pin Receptacle	Beryllium Copper	Gold	Right Angle Surface Mount	Push-Pull	50 Ohm	1
TE Connectivity AMP Connectors CONREVMCX005	Brass	Polytetrafluoroethylene (PTFE)	Gold	500 cycles	-65 °C	165 °C	6 pcs	Connector Contact Ferrule Heat Shrink Lockwasher Nut	0.1 dB	Gold	Bulkhead Front Side Nut	Crimp	6000 MHz	Solder	RP-MCX	Male Pin Receptacle	Phosphor Bronze	Gold	Panel Mount	Threaded	50 Ohm	1	RG-174
TE Connectivity AMP Connectors CONREVMCX011	Brass	Polytetrafluoroethylene (PTFE)	Gold	500 cycles	-65 °C	165 °C	4 pcs	Connector Contact Ferrule Heat Shrink	0.1 dB	Gold		Crimp	6000 MHz	Solder	RP-MCX	Male Pin Receptacle	Phosphor Bronze	Gold	Free Hanging (In-Line)	Push-Pull	50 Ohm	1	RG-174
TE Connectivity AMP Connectors CONREVMCX012	Brass	Polytetrafluoroethylene (PTFE)	Gold	500 cycles	-65 °C	165 °C	5 pcs	Connector End Cap Ferrule Heat Shrink Insulator	0.2 dB	Gold		Crimp	6000 MHz	Solder	RP-MCX	Female Socket Plug	Beryllium Copper	Gold	Free Hanging (In-Line) Right Angle	Push-Pull	50 Ohm	1	RG-174
TE Connectivity AMP Connectors CONREVMCX007-R178	Brass	Polytetrafluoroethylene (PTFE)	Gold	500 cycles	-65 °C	165 °C	5 pcs	Connector Contact Heat Shrink Spacer Support	0.1 dB	Gold		Crimp	6000 MHz	Crimp Solder	RP-MCX	Female Socket Plug	Beryllium Copper	Gold	Free Hanging (In-Line)	Push-Pull	50 Ohm	1	RG-178	250 V
TE Connectivity AMP Connectors CONREVMCX012-R178	Brass	Polytetrafluoroethylene (PTFE)	Gold	500 cycles	-65 °C	165 °C	5 pcs	Connector End Cap Ferrule Heat Shrink Insulator	0.2 dB	Gold		Crimp	6000 MHz	Solder	RP-MCX	Female Socket Plug	Beryllium Copper	Gold	Free Hanging (In-Line) Right Angle	Push-Pull	50 Ohm	1	RG-178	250 V
