B82559A0353A020
ActiveEPCOS - TDK Electronics
FIXED IND 35UH 7 MOHM SMD
B82559A0353A020
ActiveEPCOS - TDK Electronics
FIXED IND 35UH 7 MOHM SMD
Description
General part information
B82559A0353A020

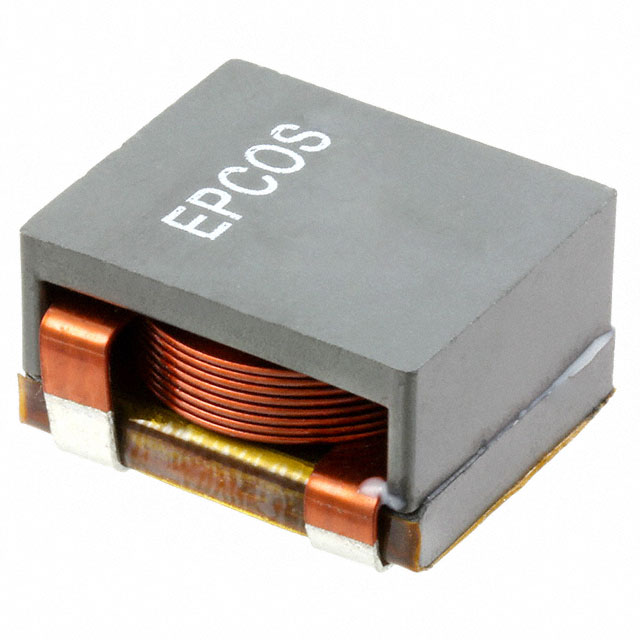

35 µH Shielded Drum Core, Wirewound Inductor 7mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82559A0353A020 |
|---|---|
| Current - Saturation (Isat) | 9.3 A |
| DC Resistance (DCR) (Max) | 7 mOhm |
| Height - Seated (Max) | 0.571 in |
| Inductance | 35 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.878 in |
| Size / Dimension Width | 0.866 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
