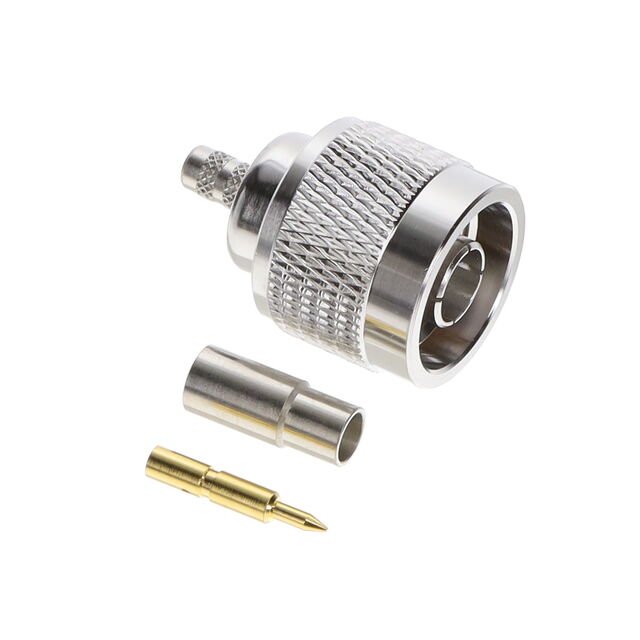

Specification	172161

Body Finish	White Bronze
Body Material	Brass
Cable Group	122, RG-58 Plenum, 89907, Belden 88240
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	11 GHz
Housing Color	Silver
Impedance	50 Ohm
Includes	Ferrule, Connector, Contact
Includes Total Count	3 pcs
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Crimp

1721 Series

Part	Fastening Type	Connector Style	Shield Termination	Impedance	Housing Color	Contact Termination	Center Contact Material	Features	Frequency - Max	Number of Ports	Connector Type	Mounting Feature	Ingress Protection	Mounting Type	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Dielectric Material	Body Finish	Body Material	Mating Cycles	Includes Total Count	Includes	Insertion Loss	Cable Group	Cable Group Diameter (Semi Rigid)	Cable Group Diameter (Default)
McGill Microwave Systems 172117	Threaded	N Type	Solder	50 Ohm	Silver	Solder	Phosphor Bronze	Extended Insulation	11 GHz	1	Female Socket Recepture	Flange	Weatherproof	Panel Mount	1500 V	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	500 cycles	2 pcs	Connector Gasket	0.15 dB
McGill Microwave Systems 172113	Threaded	N Type	Clamp	50 Ohm	Silver	Crimp	Brass		11 GHz	1	Male Pin Plug		Weatherproof	Free Hanging (In-Line)	1500 V	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	500 cycles	6 pcs	Braid Clamp Clamp Connector Contact Gasket Washer	0.15 dB	213 214 225 302 393 87 8A 9 9A 9B RG-8
McGill Microwave Systems 172153	Threaded	N Type	Solder	50 Ohm	Silver	Solder	Beryllium Copper		11 GHz	1	Female Socket Jack	Bulkhead Front Side Nut	Weatherproof	Panel Mount	1500 V	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	500 cycles	7 pcs	Connector Contact Gasket Insulator Lockwasher Nuts	0.15 dB	RG-401	0.25 in
McGill Microwave Systems 172169	Threaded	N Type	Solder	50 Ohm	Silver	Solder	Phosphor Bronze		11 GHz	1	Female Socket Jack	Flange		Panel Mount	1500 V	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	500 cycles	4 pcs	Connector Contact Insulator Nut	0.15 dB	RG-405	0.086 in	0.085 in
McGill Microwave Systems 172135	Threaded	N Type	Crimp	50 Ohm	Silver	Crimp Solder	Brass		11 GHz	1	Male Pin Plug		Weatherproof	Free Hanging (In-Line)	1500 V	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	500 cycles	4 pcs	Connector Contact Ferrule Spacer	0.7 dB	Belden 9258 LMR-240 RG-8X
McGill Microwave Systems 172118	Threaded	N Type	Solder	50 Ohm	Silver	Solder Cup	Brass		11 GHz	1	Male Pin Receptacle	Flange		Panel Mount	1500 V	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	500 cycles			0.15 dB
McGill Microwave Systems 172173	Threaded	N Type	Crimp	50 Ohm	Silver	Crimp	Phosphor Bronze		11 GHz	1	Female Socket Jack	Flange		Panel Mount	1500 V	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	500 cycles	3 pcs	Connector Contact Ferrule	0.15 dB	188 188A 316 LMR-100 M17/119-RG174 RG-174
McGill Microwave Systems 172180	Threaded	N Type	Crimp	50 Ohm	Silver	Solder	Brass		2.5 GHz	1	Male Pin Plug			Free Hanging (In-Line) Right Angle	1500 V	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	500 cycles	4 pcs	Connector End Cap Ferrule Insulator	0.15 dB	188 188A 316 LMR-100 M17/119-RG174 RG-174
McGill Microwave Systems 172133	Threaded	N Type	Solder	50 Ohm	Silver	Crimp	Brass		11 GHz	1	Male Pin Plug			Free Hanging (In-Line)	1500 V	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	500 cycles	2 pcs	Connector Contact	0.15 dB	RG-402	0.141 in
McGill Microwave Systems 172147	Threaded	N Type	Crimp	50 Ohm	Silver	Crimp	Phosphor Bronze		11 GHz	1	Female Socket Jack			Free Hanging (In-Line)	1500 V	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	500 cycles	3 pcs	Connector Contact Ferrule	0.15 dB	142 223 400 RG-55
