11027661-00
ObsoleteTE Connectivity AMP Connectors

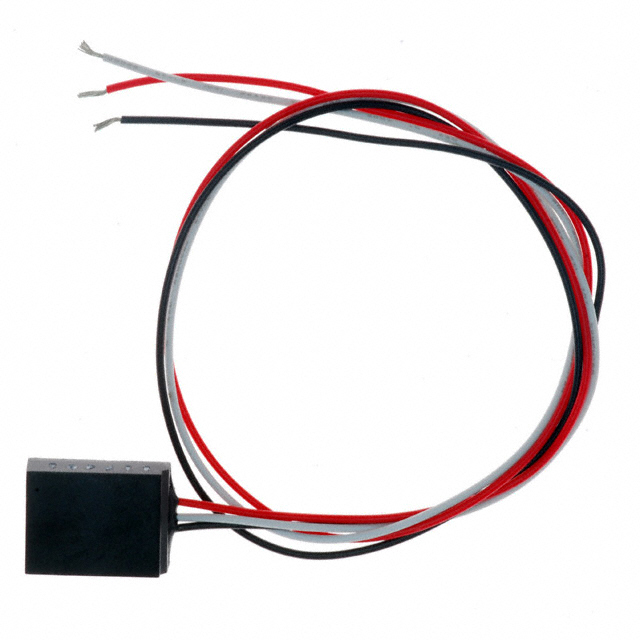

ACCELEROMETER 250G ANALOG
11027661-00
ObsoleteTE Connectivity AMP Connectors
ACCELEROMETER 250G ANALOG
Description
General part information
11027661-00
Accelerometer Z Axis ±250g 1Hz ~ 20kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | 11027661-00 |
|---|---|
| Acceleration Range (Maximum) | 250 g |
| Acceleration Range (Minimum) | -250 g |
| Axis | Z |
| Bandwidth (Max) | 20 kHz |
| Bandwidth (Min) | 1 Hz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Analog Voltage |
| Package / Case | Cable |
| Sensitivity (mV/g) | 10 mV/g |
| Type | Analog |
| Voltage - Supply (Maximum) | 40 VAC |
| Voltage - Supply (Minimum) | 3 V |
