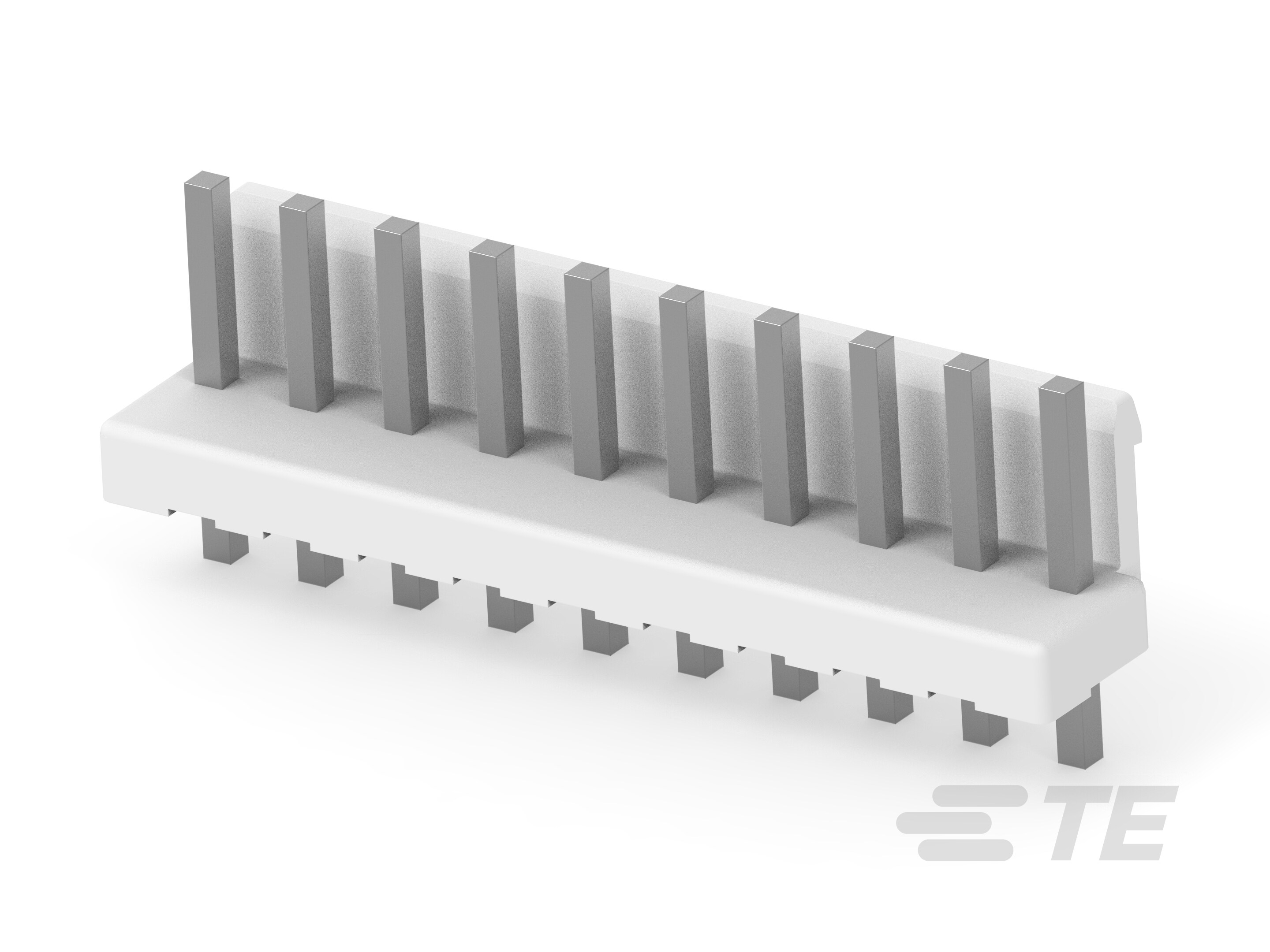

Specification	1-2375239-0

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	78.7 Ąin
Contact Length - Mating	0.303 in
Contact Length - Post	0.146 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Glow Wire Compliant
Insulation Color	Natural
Insulation Height	0.118 in
Insulation Material	Resin
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Overall Contact Length	0.567 in
Pitch - Mating	0.156 in
Shrouding	Shrouded - 1 Wall
Style	Cable/Wire, Board
Termination	Solder
