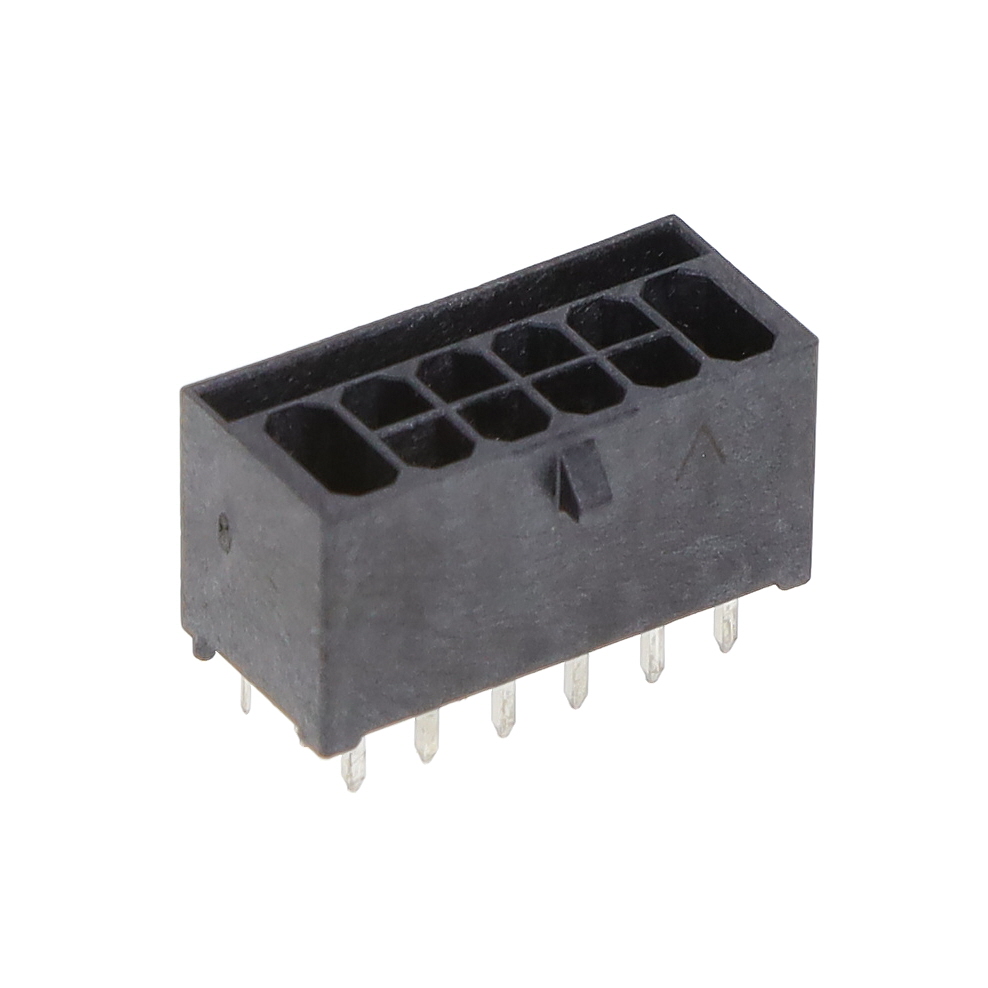

10167520-121211CLF
ActiveAmphenol ICC (FCI)
PICPWR OCP 12V, VERTICAL THROUGH
10167520-121211CLF
ActiveAmphenol ICC (FCI)
PICPWR OCP 12V, VERTICAL THROUGH
Description
General part information
10167520-121211CLF
PICPWR OCP 12V, VERTICAL THROUGH
Technical Specifications
Parameters and characteristics for this part
| Specification | 10167520-121211CLF |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 µin |
| Contact Length - Mating | 0.175 in |
| Contact Length - Post | 0.125 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 14 A |
| Fastening Type | Locking Ramp |
| Features | Board Guide, Pick and Place |
| Insulation Color | Black |
| Insulation Height | 0.39 in |
| Insulation Material | Halogen Free, Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions (Normal) | 6 |
| Number of Positions (Power) | 6 |
| Number of Positions (Total) | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Row Spacing - Mating | 0.118 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 12 V |
