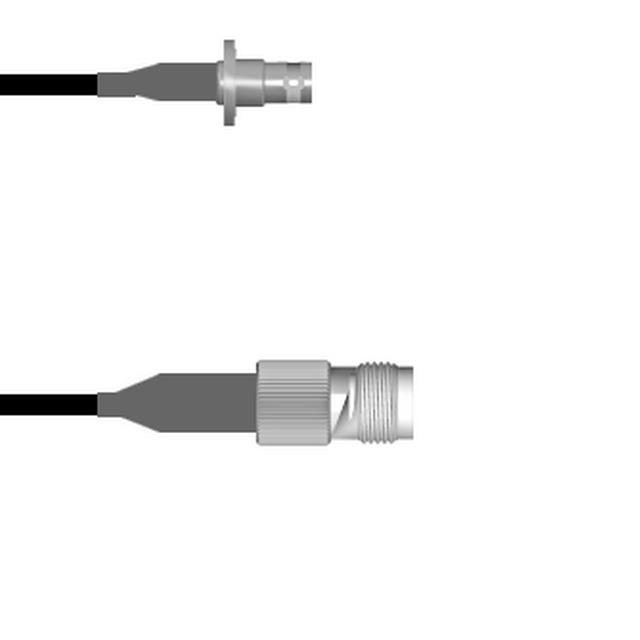

Specification	Q-0804J0008001M

1st Connector	BNC Jack
1st Connector Mounting Feature	Front Side Nut, Bulkhead
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG, 58
Color	Black
Features	Shielded
Frequency - Max	4 GHz
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC, TNC

Q-0804J0 Series

Part	2nd Connector	1st Contact Gender	Length	1st Connector Mounting Feature	2nd Contact Gender	1st Connector Mounting Type	Cable Type	Color	Style	Features	Overall Impedance	Frequency - Max	2nd Connector Mounting Type	1st Connector	Length (ft)
McGill Microwave Systems Q-0804J00080.5M	TNC Jack	Female	19.69 in	Bulkhead Front Side Nut	Female	Panel Mount	58 RG	Black	BNC TNC	Shielded	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC Jack
McGill Microwave Systems Q-0804J0008108i	TNC Jack	Female	9 ft	Bulkhead Front Side Nut	Female	Panel Mount	58 RG	Black	BNC TNC	Shielded	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC Jack
McGill Microwave Systems Q-0804J0008012i	TNC Jack	Female	12 in	Bulkhead Front Side Nut	Female	Panel Mount	58 RG	Black	BNC TNC	Shielded	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC Jack
McGill Microwave Systems Q-0804J0008048i	TNC Jack	Female	48 in	Bulkhead Front Side Nut	Female	Panel Mount	58 RG	Black	BNC TNC	Shielded	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC Jack
McGill Microwave Systems Q-0804J00081.5M	TNC Jack	Female	59.1 in	Bulkhead Front Side Nut	Female	Panel Mount	58 RG	Black	BNC TNC	Shielded	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC Jack	4.9 ft
McGill Microwave Systems Q-0804J0008024i	TNC Jack	Female	24 in	Bulkhead Front Side Nut	Female	Panel Mount	58 RG	Black	BNC TNC	Shielded	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC Jack
McGill Microwave Systems Q-0804J0008018i	TNC Jack	Female	18 in	Bulkhead Front Side Nut	Female	Panel Mount	58 RG	Black	BNC TNC	Shielded	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC Jack
McGill Microwave Systems Q-0804J0008072i	TNC Jack	Female	72 in	Bulkhead Front Side Nut	Female	Panel Mount	58 RG	Black	BNC TNC	Shielded	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC Jack
McGill Microwave Systems Q-0804J0008060i	TNC Jack	Female	1524 mm	Bulkhead Front Side Nut	Female	Panel Mount	58 RG	Black	BNC TNC	Shielded	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC Jack	5 ft
McGill Microwave Systems Q-0804J0008.25M	TNC Jack	Female	9.843 in	Bulkhead Front Side Nut	Female	Panel Mount	58 RG	Black	BNC TNC	Shielded	50 Ohms	4 GHz	Free Hanging (In-Line)	BNC Jack
