Description
General part information
CA-AMNFCN19

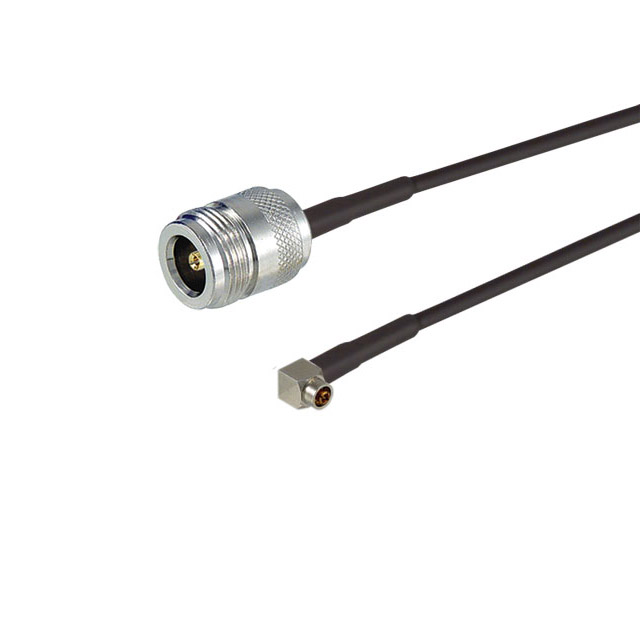

Cable Assembly Coaxial N-Type to Alprox LMR 100 19.000" (482.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CA-AMNFCN19 |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Alprox Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 100 |
| Color | Black |
| Length | 19 in |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -25 °C |
| Overall Impedance | 50 Ohms |
| Style | Alprox, N-Type |
