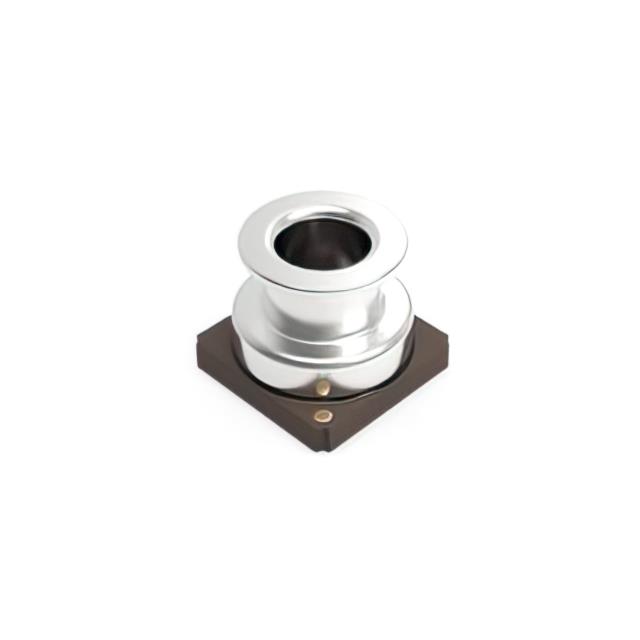

HSPPAD143C
ActiveALPS ALPINE CO., LTD
PRESSURE SENSOR
HSPPAD143C
ActiveALPS ALPINE CO., LTD
PRESSURE SENSOR
Description
General part information
HSPPAD143C
Pressure Sensor 4.35PSI ~ 29.01PSI (30kPa ~ 200kPa) Absolute 17b 4-BLGA
Technical Specifications
Parameters and characteristics for this part
| Specification | HSPPAD143C |
|---|---|
| Accuracy | 0.2 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure | 435.11 PSI |
| Mounting Type | Surface Mount |
| Operating Pressure (Max) | 29.01 PSI |
| Operating Pressure (Min) | 4.35 PSI |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Bits | 17 b |
| Output Type | I2C |
| Package / Case | 4-BLGA |
| Package Length | 3.1 mm |
| Package Name | 4-LGA |
| Package Width | 3.1 mm |
| Port Style | No Port |
| Pressure Type | Absolute |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 1.7 V |
