Description
General part information

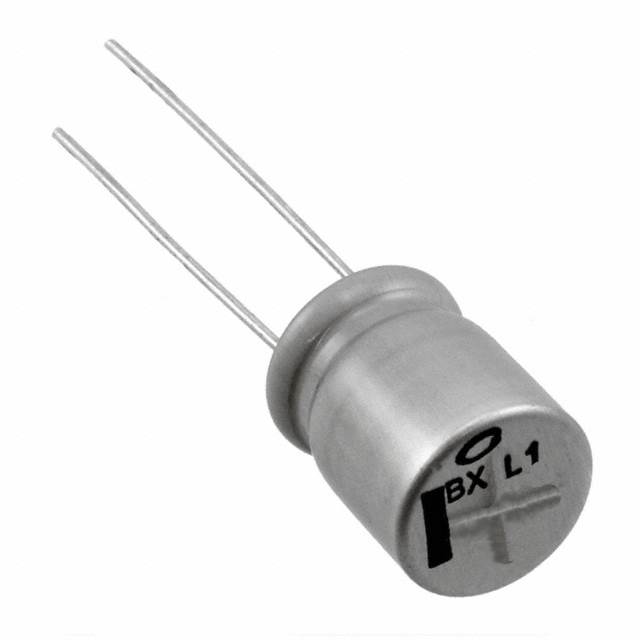

UBX1V2R2MPL1TD
2.2 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UBX1V2R2MPL1TD |
|---|---|
| Applications | Automotive |
| Capacitance | 2.2 µF |
| Height - Seated (Max) | 0.551 in |
| Lead Spacing | 0.197 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 50 mA, 25 mA |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
