233235-E
ActiveTE Connectivity AMP Connectors
DIN 41612 CONNECTORS STVH11 11 M B V 3-00 LA * B048 199 E 016
233235-E
ActiveTE Connectivity AMP Connectors
DIN 41612 CONNECTORS STVH11 11 M B V 3-00 LA * B048 199 E 016
Description
General part information
233235-E

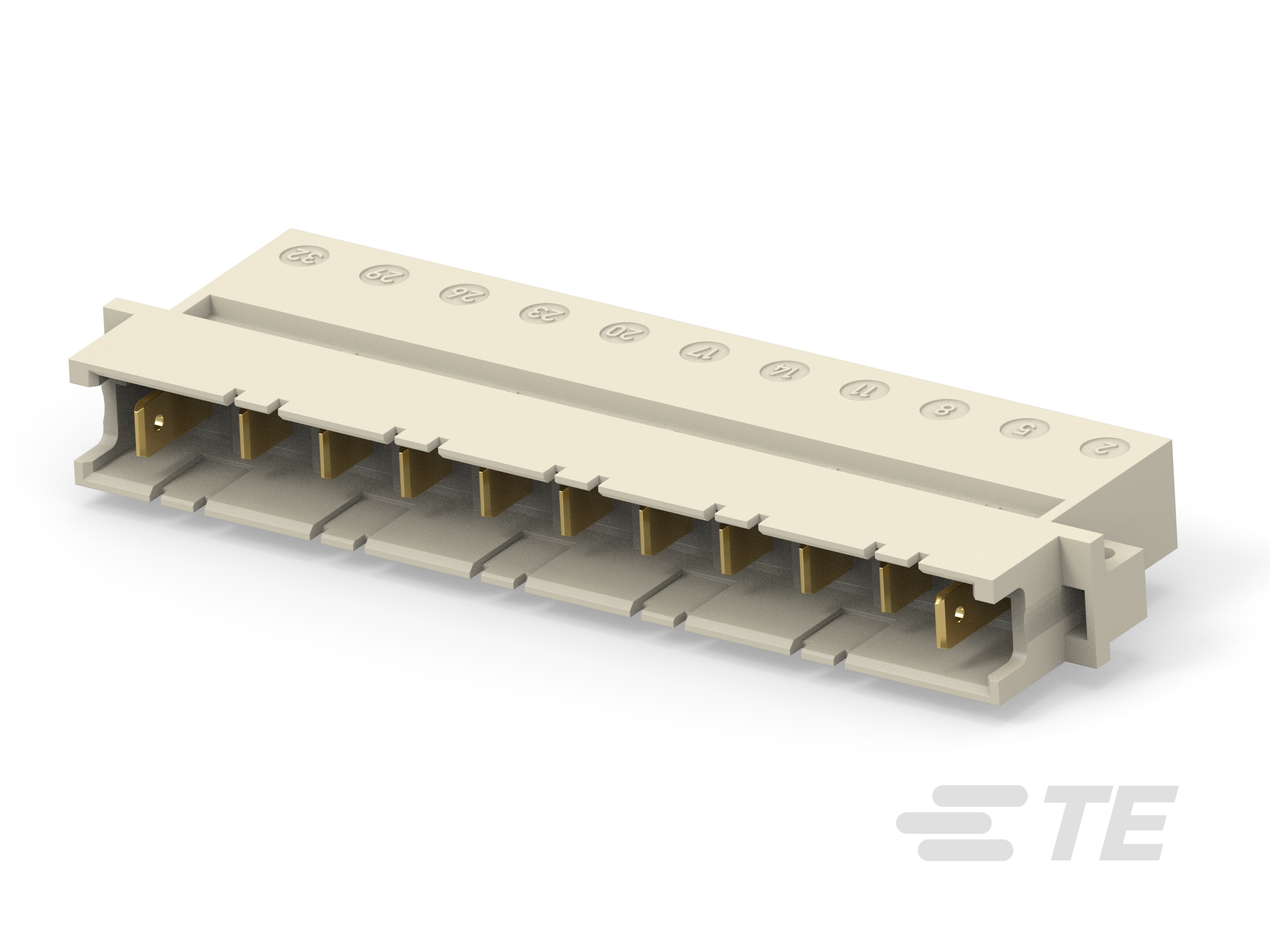

Plug, Board-to-Board, 11 Position, 7.62 mm [.3 in] Centerline, Printed Circuit Board, 1 Row, Right Angle, 11 Column, Eurocard Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 233235-E |
|---|---|
| Connector Type | Male Blades, Header |
| Features | Flange |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 11 |
| Number of Rows | 1 |
| Pitch | 0.3 in |
| Termination | Solder |
