333-016-520-807

Active

EDAC Inc.

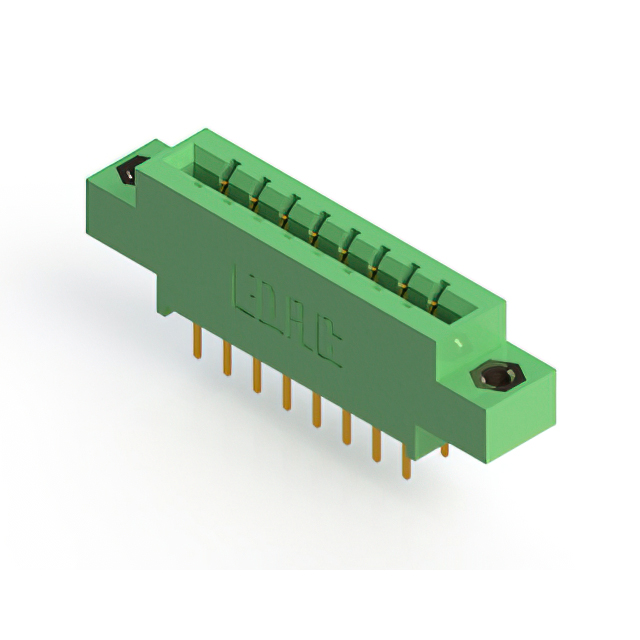

CARD EDGE CONNECTOR, 16 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, M3, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

333-016-520-807

Active

EDAC Inc.

CARD EDGE CONNECTOR, 16 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, M3, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-016-520-807

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	16
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

333-016 Series

...

Part	Read Out	Termination Rows	Color	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Gender	Number of Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Type	Contact Material	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Pitch [x]	Pitch [x]	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Termination	Features	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature
EDAC Inc. 333-016-559-803	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Cantilever	Copper Alloy	8	8	8	Non Specified - Dual Edge	-40 °C	105 ░C	16	0.156 in	3.96 mm	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	Wire Wrap
EDAC Inc. 333-016-524-804	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2	3.96 mm	Top Mount Opening Unthreaded	0.156 in	Cantilever	Copper Alloy	8	8	8	Non Specified - Dual Edge	-40 °C	105 ░C	16	0.156 in	3.96 mm	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Solder
EDAC Inc. 333-016-541-803	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Cantilever	Copper Alloy	8	8	8	Non Specified - Dual Edge	-40 °C	105 ░C	16	0.156 in	3.96 mm	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Wire Wrap
EDAC Inc. 333-016-558-807	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2		M3 Threaded Insert Top Mount Opening		Cantilever	Copper Alloy	8	8	8	Non Specified - Dual Edge	-40 °C	105 ░C	16	0.156 in	3.96 mm	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	Solder
EDAC Inc. 333-016-555-807	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2		M3 Threaded Insert Top Mount Opening		Cantilever	Copper Alloy	8	8	8	Non Specified - Dual Edge	-40 °C	105 ░C	16	0.156 in	3.96 mm	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	Solder Eyelet(s)	Card Extender
EDAC Inc. 333-016-544-201	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2				Cantilever	Copper Alloy	8	8	8	Non Specified - Dual Edge	-40 °C	105 ░C	16	0.156 in	3.96 mm	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Wire Wrap
EDAC Inc. 333-016-520-807	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2		M3 Threaded Insert Top Mount Opening		Cantilever	Copper Alloy	8	8	8	Non Specified - Dual Edge	-40 °C	105 ░C	16	0.156 in	3.96 mm	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Solder
EDAC Inc. 333-016-556-212	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Cantilever	Copper Alloy	8	8	8	Non Specified - Dual Edge	-40 °C	105 ░C	16	0.156 in	3.96 mm	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	Solder	Card Extender
EDAC Inc. 333-016-542-603	Single	1	Green	Gold	10 Áin	0.25 Ám	Female	1	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Cantilever	Copper Alloy				Non Specified - Single Edge	-40 °C	105 ░C	16	0.156 in	3.96 mm	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Wire Wrap		16
EDAC Inc. 333-016-560-802	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2				Cantilever	Copper Alloy	8	8	8	Non Specified - Dual Edge	-40 °C	105 ░C	16	0.156 in	3.96 mm	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	Solder	Card Extender		3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 8.11

Description

General part information

333-016 Series

16 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
